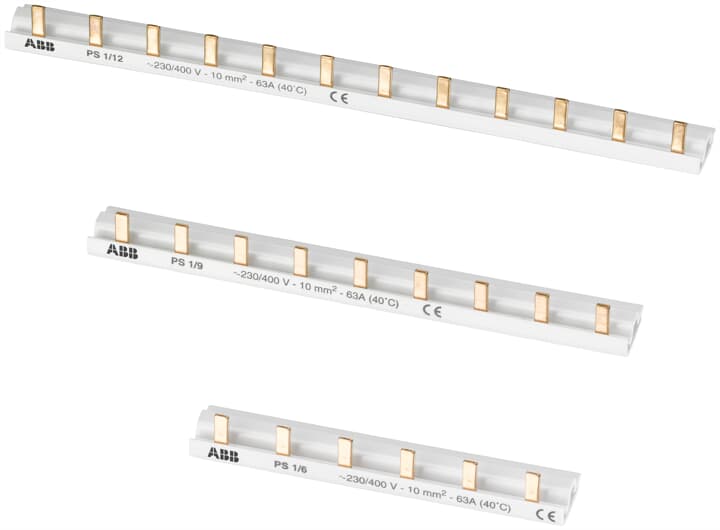

BUSBAR 1-POLE 38 MODULES
Product code
3219975
PS1/38/16H - Busbars PS
Feed-in bars for ABB pro M compact® series products: S200, 200S, FH200, F200, and DS200
End piece: PS-END0 (Snro: 3211091)
- Easy and quick to install
- Wide range of products
- Suitable for circuit breakers, residual current devices, and residual current circuit breakers
- Available for various pole configurations: 1P, 2P, 3P, 3P+N This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase busbar (EC000215)
Number of phases1
Number of poles38
Suitable for number of devices38
Module width44698 mm
Cross section16 mm²
Length995 mm
Width in number of modular spacings57
Rated permanent current Iu80 A
Type of electric connectionPin
Insulatedyes
Rated surge voltage4.5 kV
Conditioned rated short-circuit current Iq25 kA
Max. rated operation voltage Ue690 V
Rated short-time withstand current lcw25 kA
Suitable for devices with N-conductorno
Product codes
SAPCBD901
STK3219975
PLC3219975
GTIN/EAN4016779586146
Manufacturer part numberPS1/38/16H
Vendor material number3219975
Basic information
Package measurements (L x W x H)1000 x 15 x 19 mm
Package volume0.285 l
Package weight0.338 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39121117
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
