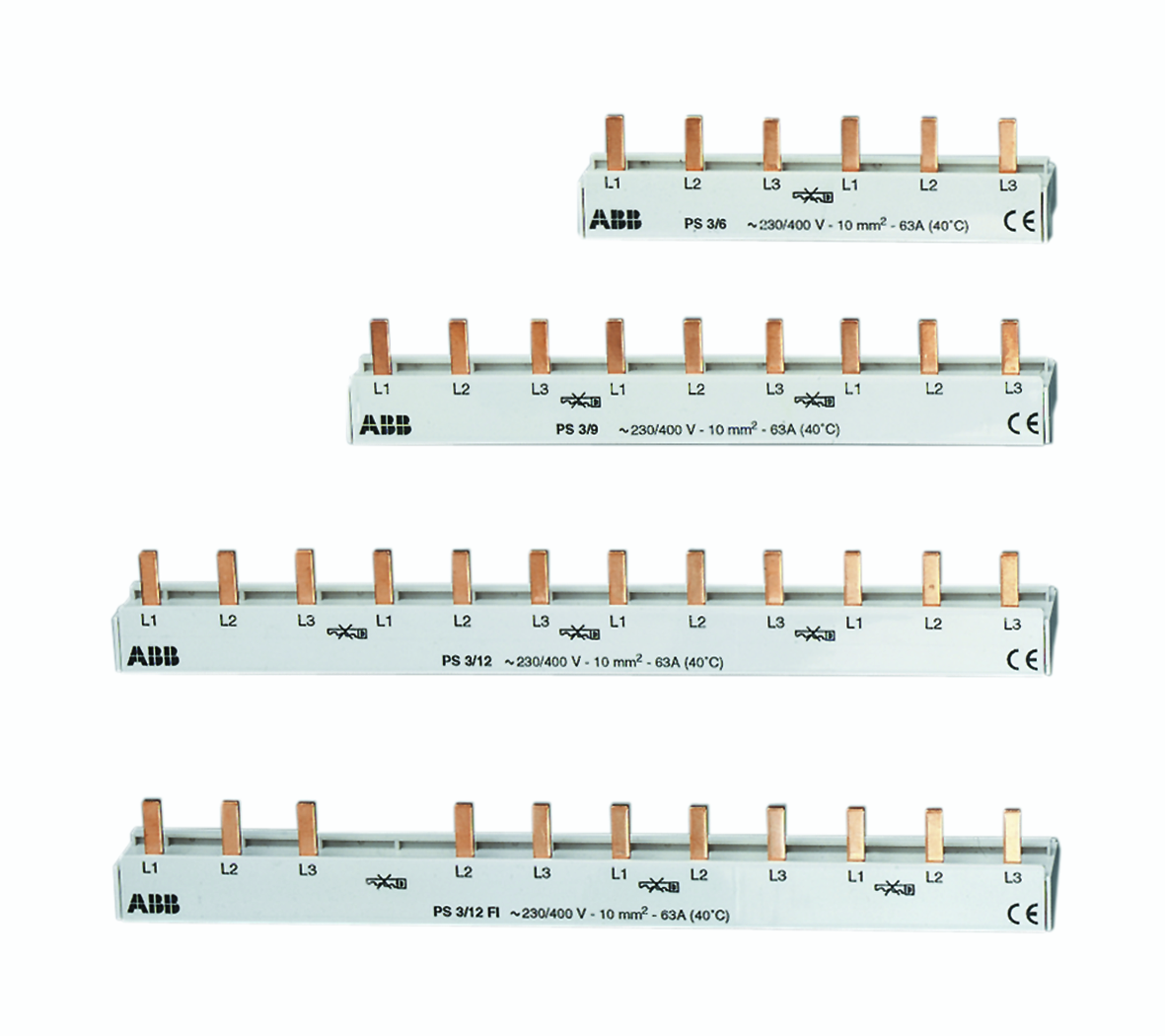

BUSBAR PS 3/12 3-POLS 12-PINS 2CDL231001R1012
Product code
3259496
Feed-in bars for ABB pro M compact® series products: S200, 200S, FH200, F200, and DS200
End piece: PS-END (Snro: 3259498)
- Easy and quick to use
- Wide range of products
- Suitable for circuit breakers, residual current devices, and residual current circuit breakers
- Available for various pole configurations: 1P, 2P, 3P, 3P+N This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase busbar (EC000215)
Number of phases3
Number of poles12
Suitable for number of devices4
Module width44698 mm
Cross section10 mm²
Length211 mm
Width in number of modular spacings12
Rated permanent current Iu63 A
Type of electric connectionPin
Insulatedyes
Rated surge voltage4 kV
Max. rated operation voltage Ue690 V
Rated short-time withstand current lcw25 kA
Suitable for devices with N-conductorno
Suitable for devices with auxiliary switchno
Product codes
SAPASG069
STK3259496
PLC3259496
GTIN/EAN4016779463607
Manufacturer part number2CDL231001R1012
Vendor material number3259496
