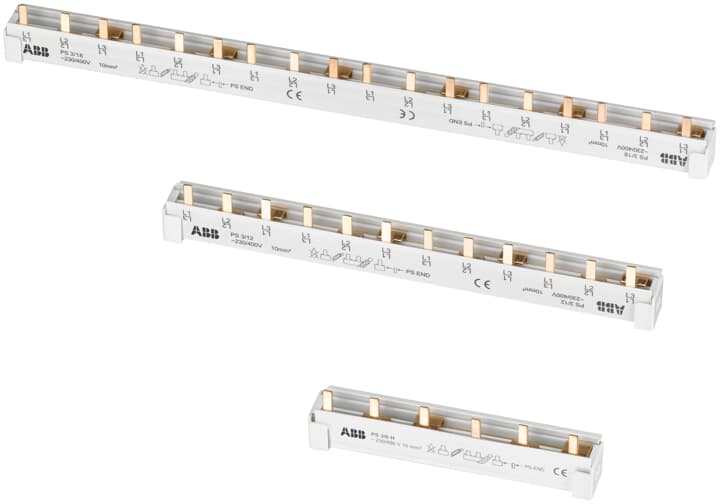

BUSBAR S200 2-POLIG 48 MODUULIA
Product code
3210195
Feed-through terminals for ABB pro M compact® products: S200, 200S, FH200, F200, and DS200
End piece: PS-END (Part No.: 3259498)
•Easy and quick to use
•Wide range of products
•Suitable for circuit breakers, residual current devices, and residual current circuit breakers
•Available for various pole configurations: 1P, 2P, 3P, 3P+N This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase busbar (EC000215)
Number of phases2
Number of poles48
Suitable for number of devices24
Module width44729 mm
Cross section16 mm²
Length1046 mm
Width in number of modular spacings60
Rated permanent current Iu80 A
Type of electric connectionPin
Insulatedyes
Rated surge voltage4.5 kV
Conditioned rated short-circuit current Iq25 kA
Max. rated operation voltage Ue690 V
Rated short-time withstand current lcw25 kA
Suitable for devices with N-conductorno
Product codes
SAPDIG656
STK3210195
PLC3210195
GTIN/EAN4016779584630
Manufacturer part numberPS2/48/16HA
Vendor material number3210195
Basic information
Package measurements (L x W x H)1046 x 18 x 30 mm
Package volume0.565 l
Package weight0.48 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121117
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
