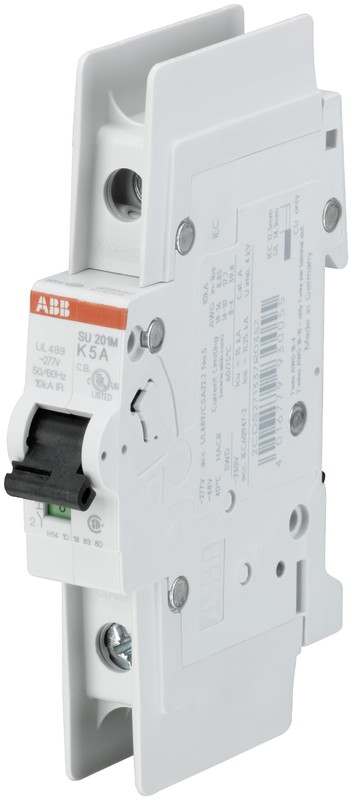

CIRCUIT BREAKER SU200M 1-POLES C-CHAR. 13A
Product code
3211249
1-pole C-curve 13A 10kA, IEC 230/400VAC, UL 489 277VAC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth69 mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current13 A
Rated voltage277 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Frequency50-60 Hz
Power loss2.3 W
Current limiting class3
Flush-mounted installationno
Product codes
SAPDCT306
STK3211249
PLC3211249
GTIN/EAN4016779930857
Manufacturer part number2CDS271337R0134
Vendor material number3211249
Basic information
Package measurements (L x W x H)111 x 17.5 x 69 mm
Package volume0.134 l
Package weight0.125 kg
Base uniteach
Package units1 / 72
Package contents–
UNSPSC39121614
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
