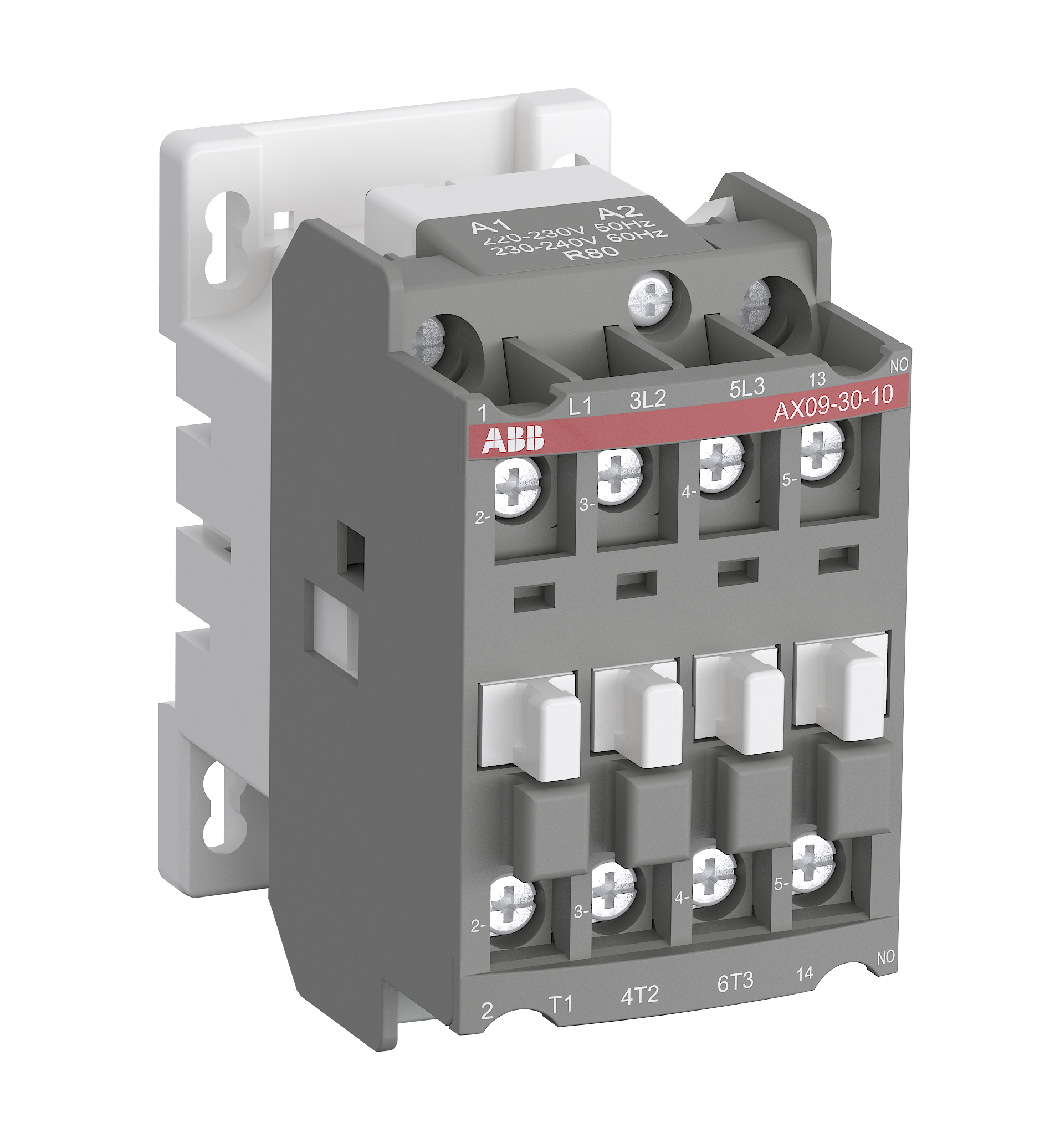

CONTACTOR 3-POLE. 11KW 0S,1A, 25A(AC-3)
Product code
3707333
Three-pole contactor set used in property centers. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz110-120 V
Rated control supply voltage AC 60 Hz110-120 V
Rated control supply voltage DC110-120 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz690-690 V
Operating voltage AC 60 Hz690-690 V
Rated operation current Ie at AC-1, 400 V32 A
Rated operation current Ie at AC-3, 400 V25 A
Rated operation power at AC-3, 400 V11 kW
Rated operation power NEMA11.186 kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Product codes
SAPCDE243
STK3707333
PLC3707333
GTIN/EAN3471522398840
Manufacturer part numberAX25-30-01-84
Vendor material number3707333
Basic information
Package measurements (L x W x H)76 x 44 x 74 mm
Package volume0.247 l
Package weight0.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
