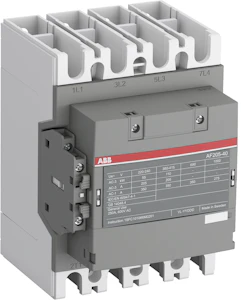

CONTACTOR 4 POLES. 1NO,1NC 350A(AC-1)
Product code
3707214
Kontaktor#AF205-40-11-13#100-250V
4-pole AF contactors
In new advanced AF contactors, electronic coil control is a standard feature. Electronic coil control can offer many advantages compared to traditional alternatives. When combined with ABB’s extensive product range, this creates a configuration optimized for your application needs.
Benefits
In new advanced AF contactors, electronic coil control is a standard feature. Electronic coil control can offer many advantages compared to traditional alternatives. When combined with ABB’s extensive product range, this creates a configuration optimized for your application needs.
Benefits
- Smaller product portfolio enables logistics optimization and reduces inventory management
- Global product support and use of identical part numbers worldwide
- Coil energy consumption reduced by 80% compared to traditional coil control
- Ensure uninterrupted operation with AF technology’s high tolerance to control voltage fluctuations
- AFz solution for direct logic control, without intermediate relays
- Up to 1,000 A, 690 V AC-1
- Only four coil voltage ranges covering 24–500 V AC and 20–500 V DC
- Internal interference protection for the control circuit
- Mirrored and mechanically linked auxiliary contacts
- Additional accessories easy to install on-site without tools
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz100 - 250 V
Rated control supply voltage AC 60 Hz100 - 250 V
Rated control supply voltage DC100 - 250 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitRail connection
Operating voltage AC 50 Hz1000 - 1000 V
Operating voltage AC 60 Hz1000 - 1000 V
Rated operation current Ie at AC-1, 400 V350 A
Rated operation current Ie at AC-3, 400 V205 A
Rated operation power at AC-3, 400 V110 kW
Rated operation power NEMA55.928 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Product codes
SAPCED802
STK3707214
PLC3707214
GTIN/EAN7320500503706
Manufacturer part numberAF205-40-11-13
Vendor material number3707214
Basic information
Package measurements (L x W x H)152.6 x 140 x 195.6 mm
Package volume4.179 l
Package weight3.37 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
