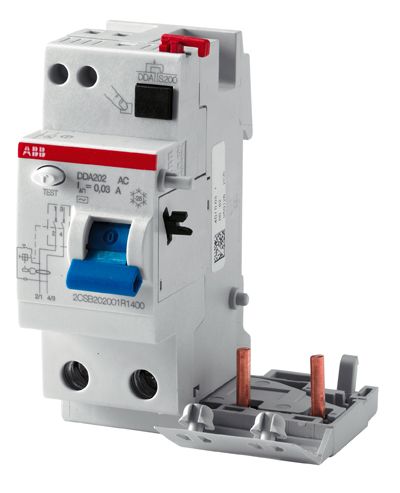

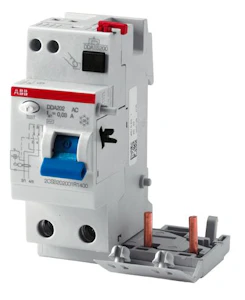

FAULT CURR ADD-ON BLOCK DDA200 2-POLES 25A 30MA
Product code
3259826
2-pole 25A 30mA 10kA, 230/400VAC, Type A This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) module (EC002297)
Nominal voltage230-400 V
Nominal current25 A
Rated fault current adjustableno
Rated fault current0.03-0.03 A
Max. delay time0 ms
Delay adjustableno
Number of poles2
Leakage current typeA
Frequency50/60 Hz
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss2 W
Connectable conductor cross section solid-core25-25 mm²
Connectable conductor cross section multi-wired25-25 mm²
Anti-nuisance tripping versionno
Product codes
SAPGAR283
STK3259826
PLC3259826
GTIN/EAN8012542795407
Manufacturer part number2CSB202101R1250
Vendor material number3259826
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.22 kg
Base uniteach
Package units1
Package contents1
UNSPSC39121614
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
