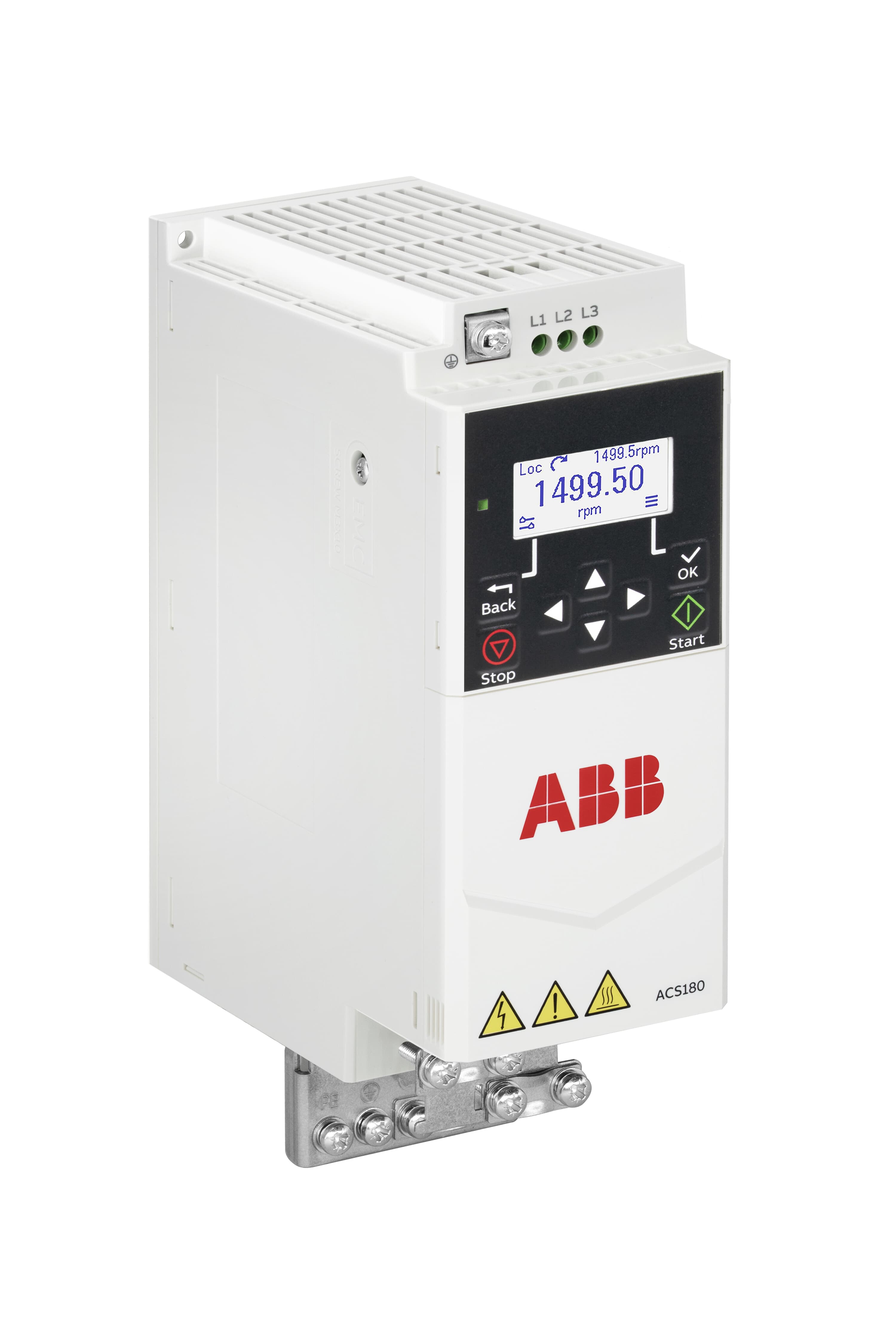

FREQUENCY CONVERTER ACS180-04S-06A9-1, 1,1kW, 1-P
Product code
3800391
ACS180 Frequency Inverter IP20
Frame size R1
4 digital inputs
1 digital output
1 analog input
1 analog output
1 relay
STO (SIL3, 2-channel)
Modbus RTU (RS485)
Compatible with the following option: control panel: 38 045 62
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage200 - 240 V
Mains frequency50/60 Hz
Number of phases input1
Number of phases output3
Max. output frequency599 Hz
Max. output voltage240 V
Nominal output current I2N6.9 A
Max. output at quadratic load at rated output voltage1.1 kW
Max. output at linear load at rated output voltage1.1 kW
Power consumption64 W
Relative symmetric net frequency tolerance5 %
Relative symmetric net voltage tolerance10 %
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Product codes
SAPDCL104
STK3800391
PLC3800391
GTIN/EAN6438177649168
Manufacturer part numberACS180-04S-06A9-1
Vendor material number3800391
Basic information
Package measurements (L x W x H)143 x 70 x 209 mm
Package volume2.092 l
Package weight0.92 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandABB
VendorABB OY MOOTTORIT JA TAAJUUS-
