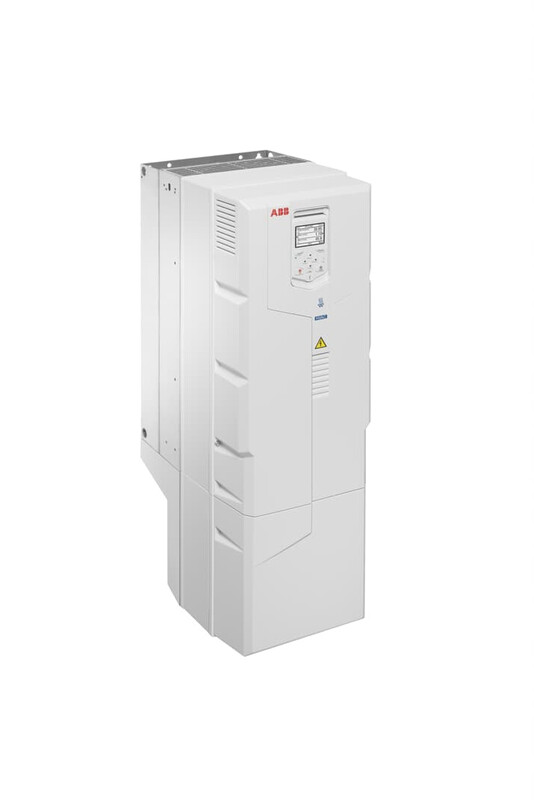

FREQUENCY CONVERTER IP21 ACH580-01-206A-4 110kW
Product code
3804291
- Easy-to-use frequency converter
- Meets all Finland HVAC specifications
- All necessary components included inside the unit (filters, panel, etc.) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency500 Hz
Max. output voltage480 V
Nominal output current I2N206 A
Max. output at quadratic load at rated output voltage110 kW
Max. output at linear load at rated output voltage110 kW
Relative symmetric net frequency tolerance5 %
Relative symmetric net voltage tolerance10 %
Number of analogue outputs2
Number of analogue inputs2
Number of digital outputs3
Number of digital inputs6
Product codes
SAPCCC349
STK3804291
PLC3804291
GTIN/EAN6438177305873
Manufacturer part numberACH580-01-206A-4
Vendor material number3804291
Basic information
Package measurements (L x W x H)370 x 284 x 880 mm
Package volume92.47 l
Package weight55 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandABB
VendorABB OY MOOTTORIT JA TAAJUUS-
The country of origin stated by the supplierFinland
