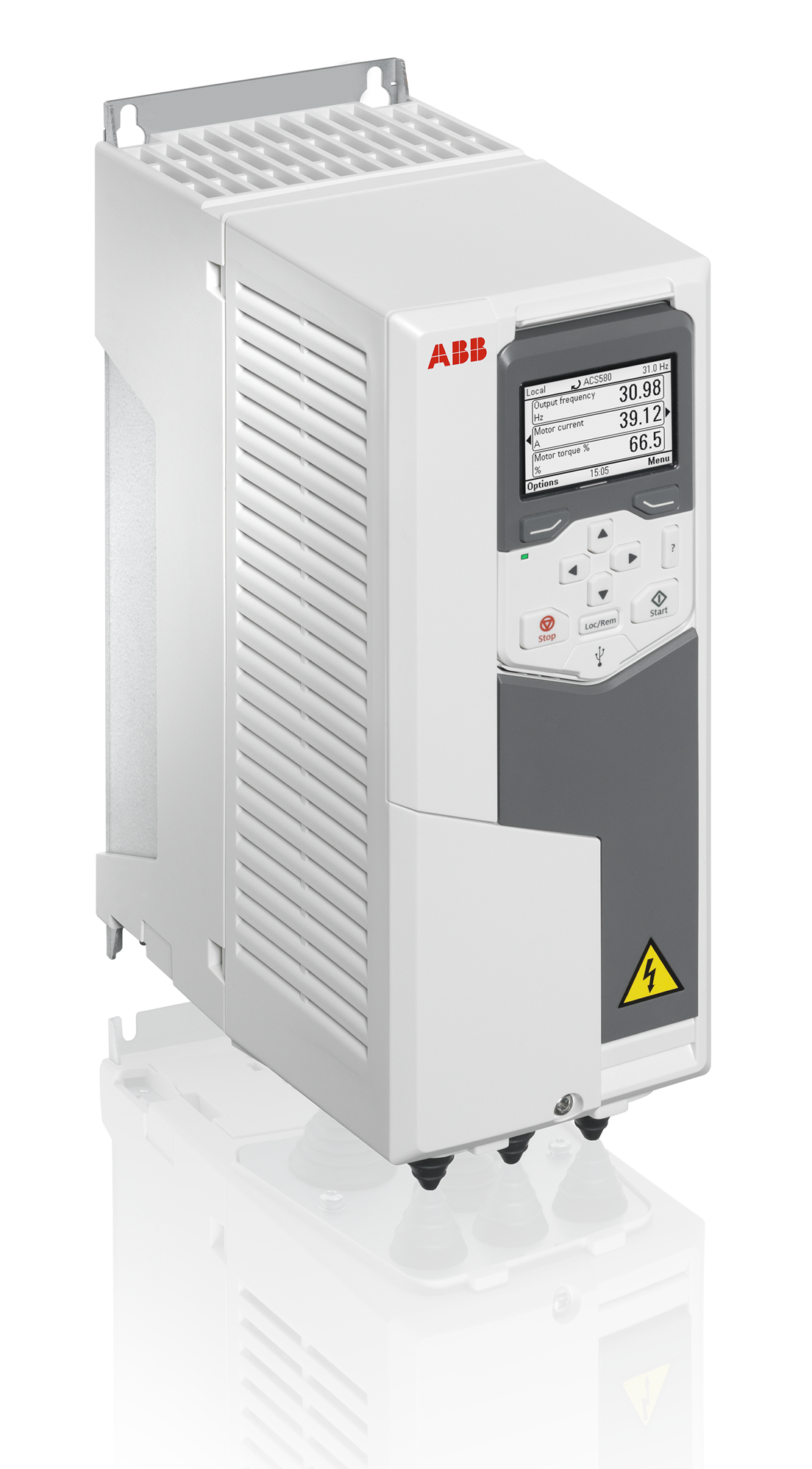

FREQUENCY CONVERTER IP55 ACS580-01-039A-4+B056 18,5kW
Product code
3804258
Standard features:
Frame size R3
Wall mounting
IP55
EMC C2 filter (internal EMC filter)
Choke (internal)
Modbus RTU fieldbus support
Safe Torque Off function
Bottom cable entry, cable gland enclosure or penetration plate
Conformally coated circuit boards
Quick start guide for installation and commissioning (multilingual)
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380 - 480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency500 Hz
Max. output voltage480 V
Nominal output current I2N38 A
Max. output at quadratic load at rated output voltage18.5 kW
Max. output at linear load at rated output voltage18.5 kW
Relative symmetric net frequency tolerance5 %
Relative symmetric net voltage tolerance10 %
Number of analogue outputs2
Number of analogue inputs2
Number of digital outputs3
Number of digital inputs6
Product codes
SAPATG165
STK3804258
PLC3804258
GTIN/EAN6438177306023
Manufacturer part numberACS580-01-039A-4+B056
Vendor material number3804258
Basic information
Package measurements (L x W x H)237 x 203 x 454 mm
Package volume22.342 l
Package weight15.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandABB
VendorABB OY MOOTTORIT JA TAAJUUS-
The country of origin stated by the supplierFinland
