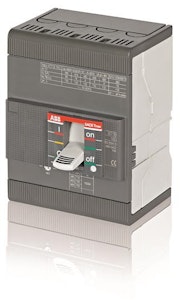

MOULDED-CASE CIRCUIT BREAKER XT1B 160 TMD 63-630 4P
Product code
3638196
Tmax XT compact circuit breakers offer exceptional performance in an even smaller size, easy installation, and improved safety. Four sizes are available: XT1, XT2 up to 160 A, and XT3, XT4 up to 250 A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu160 A
Rated voltage690-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz18 kA
Overload release current setting44.1-63 A
Adjustment range undelayed short-circuit release630-630 A
Power loss4.3 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPCPJ154
STK3638196
PLC3638196
GTIN/EAN8015644007232
Manufacturer part numberXT1B 160 TMD 63-630 4P F F
Vendor material number3638196
Basic information
Package measurements (L x W x H)143 x 128 x 135 mm
Package volume2.471 l
Package weight1.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121616
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
