JUNCTION BOX IP65 AP 9 86X86X39MM
Product code
1612509

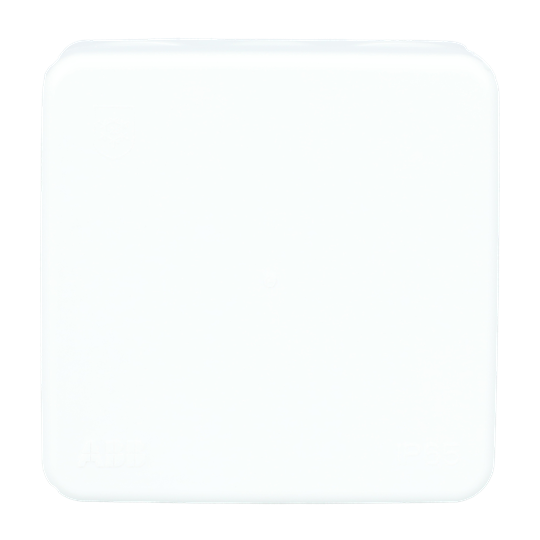

Surface-mounted junction box, IP65, 86 x 86 mm, white

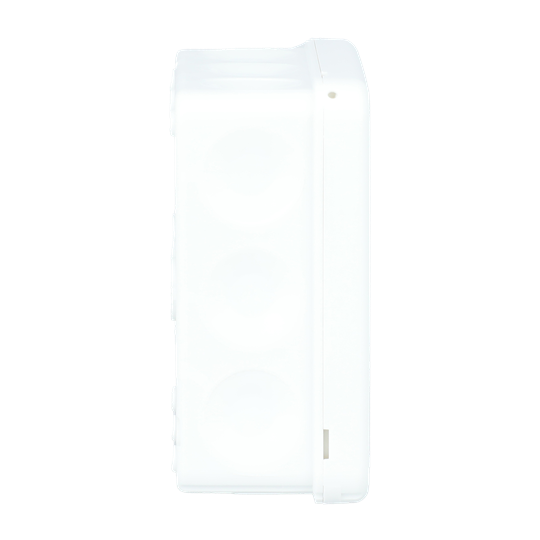

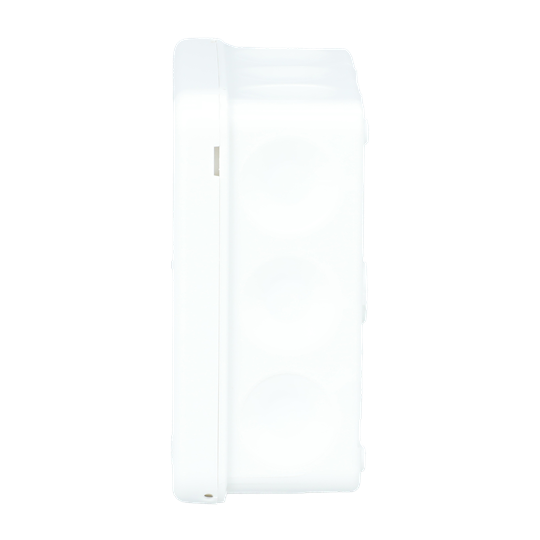

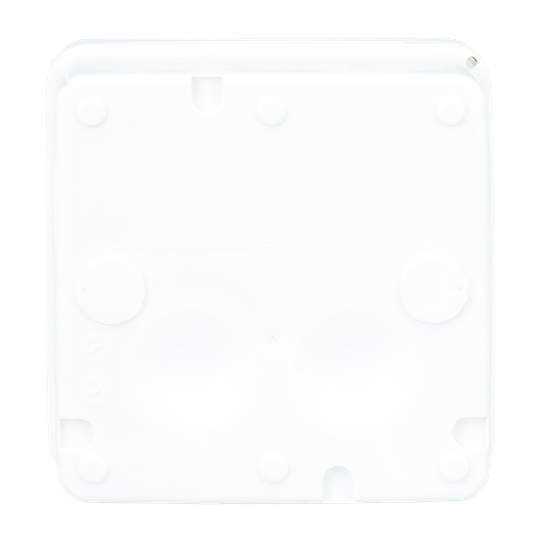

The square junction box AP9 (2,5 mm², 500 V) is equipped with 12 membrane cable entries for cables up to Ø 17 mm in the sides, and two at the bottom for cables up to Ø 19 mm . Cables are easy to connect by simply inserting the stripped ends through the inlets. The box locks by snapping and can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with strain-reliefs AS9, AS9.1 and AS9.3, which fits for Ø 6 - 15,5 mm cable. VDE-approved. Mounting temperature -15...+60 °C. Made of halogen free material (IEC/61249-2-21).
Product details
Technical specifications
Max. conductor cross section2.5 mm²
Equipped withNone
ShapeSquare
Mounting methodUniversal
Mounting in the soilfalse
Mounting under waterfalse
For tube diameterOther
Inlet from the reartrue
Length86 mm
Width86 mm
Depth86 mm
Tackablefalse
Number of inlets14
Type of housing feed-throughSeal membrane
MaterialPlastic
Product codes
SAPAAE489
PLC1612509
STK1612509
GTIN/EAN6410016125095
Manufacturer part number2TKA140012G1
Vendor material number1612509
Basic information

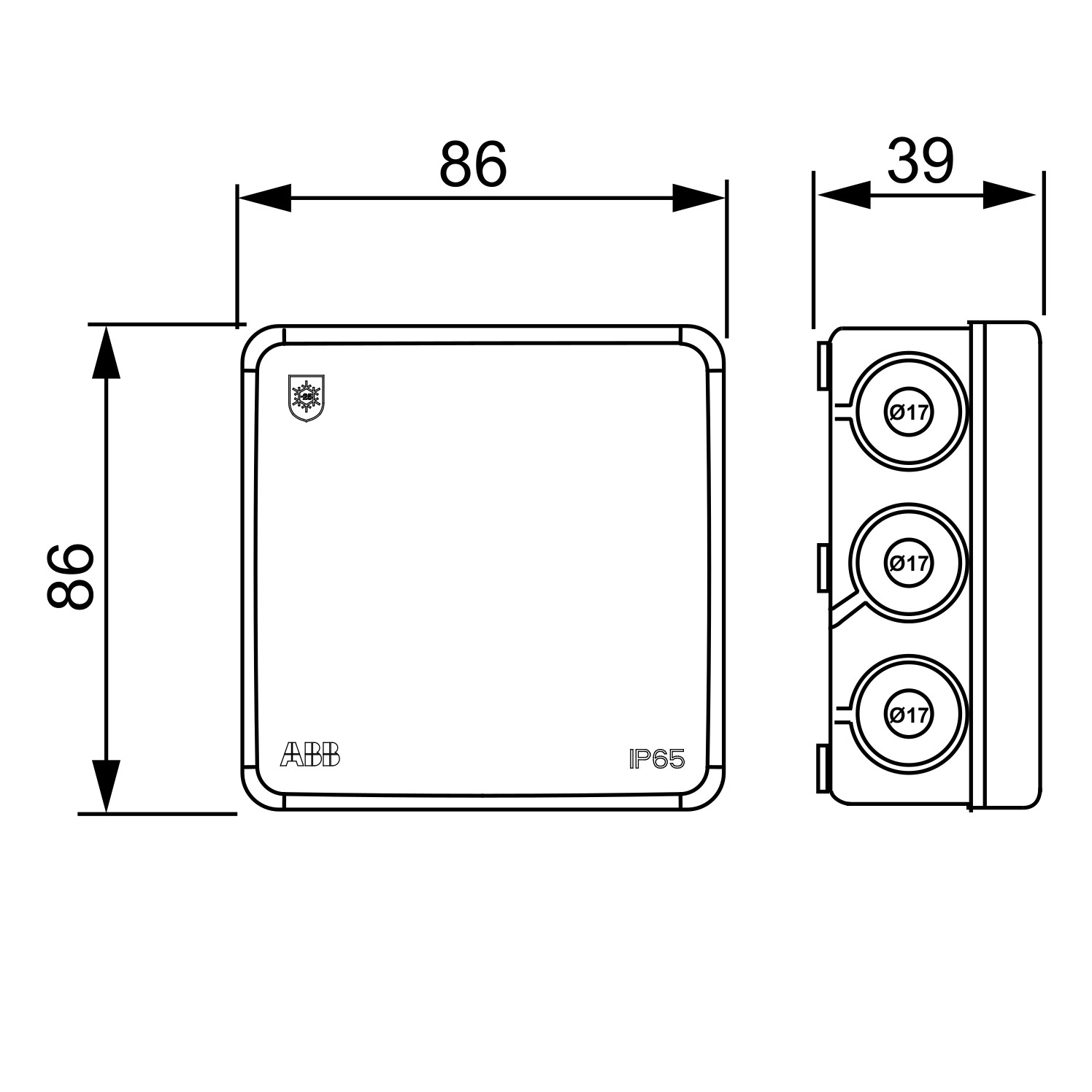

Package measurements (L x W x H)86 x 86 x 39 mm
Package volume0.288 l
Package weight0.068 kg
Base uniteach
Package units1 / 5 / 50 / 1800
Package contents–
UNSPSC39121303
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
