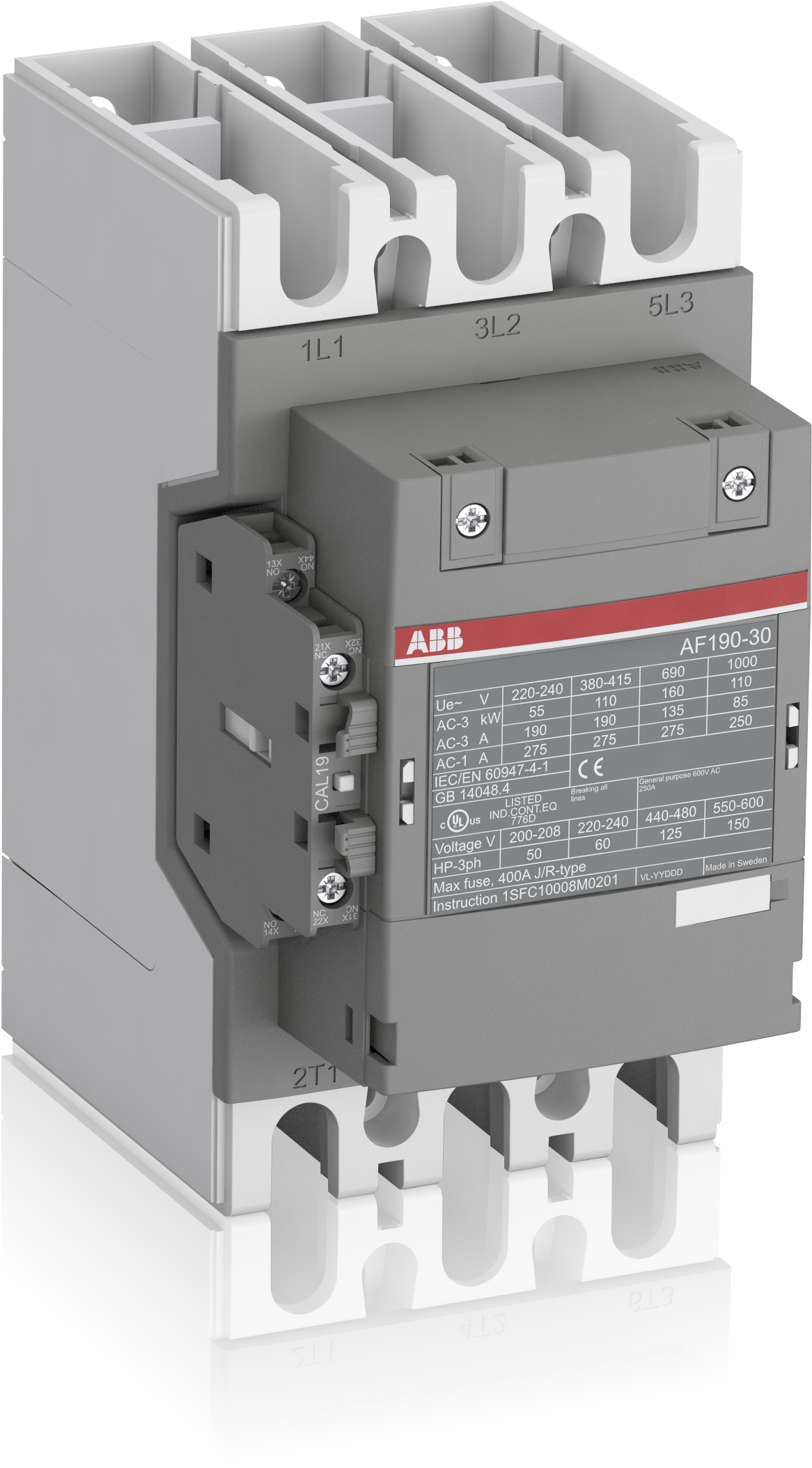

CONTACTOR AF190-30-11-11
Product code
3706388
KONTAKTOR#AF190-30-11-11#24-60V
3-pole AF contactors
New AF contactors feature advanced AF technology as standard. Electronic coil control offers numerous advantages compared to traditional alternatives. When combined with ABB’s extensive product range, an optimal configuration is always achieved.
Benefits
New AF contactors feature advanced AF technology as standard. Electronic coil control offers numerous advantages compared to traditional alternatives. When combined with ABB’s extensive product range, an optimal configuration is always achieved.
Benefits
- Smaller product range enables logistics optimization and reduces inventory management
- The same products can be used globally: 100-250 V AC/DC coil suitable for all standard network voltages
- Coil energy consumption reduced by 80% compared to traditional coil control solutions
- Ensure uninterrupted operation with AF technology’s high tolerance to control voltage fluctuations
- AFz solution for direct logic control, without intermediate relays
- Up to 560 kW – 400 V AC-3 and 2,650 A – 690 V AC-1
- Four coil voltage ranges covering 24-500 V AC and 20-500 V DC
- Screw, spring, and ring terminals
- Internal control circuit surge protection; no disturbances generated in the control circuit when the contactor opens
- Ready-made terminal and locking kits enable easy, fast, and secure assembly of reversing and star-delta starters
- Mirror and mechanically coupled auxiliary contacts.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz24-60 V
Rated control supply voltage AC 60 Hz24-60 V
Rated control supply voltage DC24-60 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitRail connection
Operating voltage AC 50 Hz1000-1000 V
Operating voltage AC 60 Hz1000-1000 V
Rated operation current Ie at AC-1, 400 V275 A
Rated operation current Ie at AC-3, 400 V190 A
Rated operation power at AC-3, 400 V90 kW
Rated operation power NEMA93.213 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Product codes
SAPANY649
STK3706388
PLC3706388
GTIN/EAN7320500480410
Manufacturer part numberAF190-30-11-11
Vendor material number3706388
Basic information
Package measurements (L x W x H)150 x 105 x 152 mm
Package volume2.394 l
Package weight3.228 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
