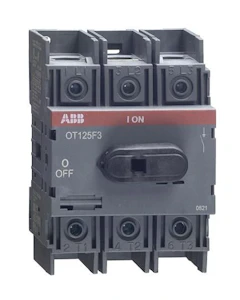

LOAD BREAK SWITCH LEVER OT125F3/B25
Product code
3601410
ABB load switch. Reliable in all conditions. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC750 V
Rated operating voltage750-750 V
Rated permanent current Iu125 A
Rated permanent current at AC-23, 400 V90 A
Rated short-time withstand current lcw2.5 kA
Rated operation power at AC-23, 400 V45 kW
Switching power at 400 V45 kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Product codes
SAPAEX835
STK3601410
PLC3601410
GTIN/EAN6417019391649
Manufacturer part numberOT125F3/B25
Vendor material number3601410
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.031 l
Package weight0.016 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
The country of origin stated by the supplierFinland
Documents (1)
Links
