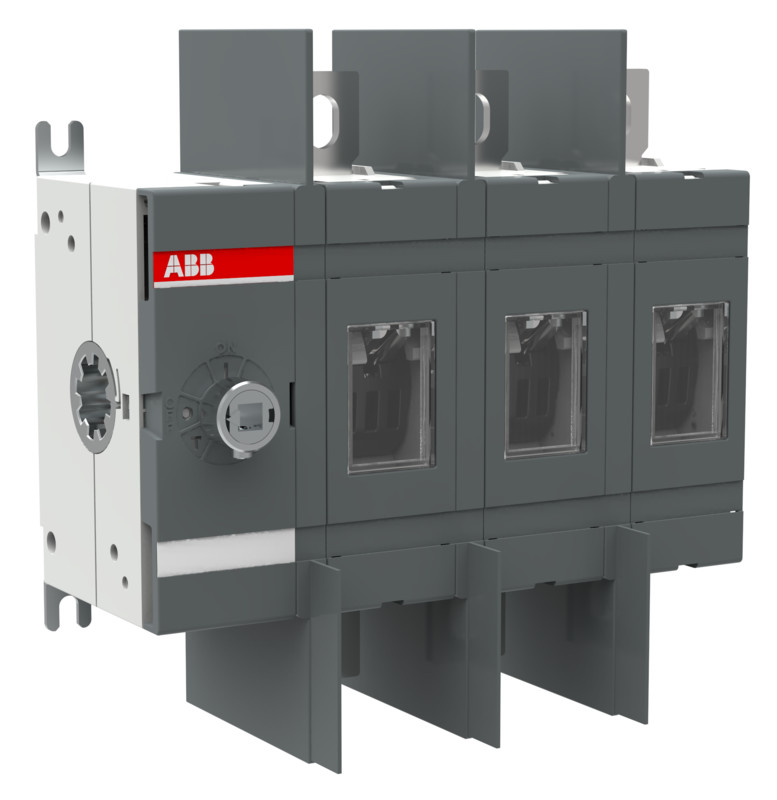

LOAD BREAK SWITCH ROTARY UL/CSA 3-POLES 200A 480V
Product code
3601717
ABB load switch. Reliable in all conditions. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage1000-1000 V
Rated permanent current Iu200 A
Rated permanent current at AC-23, 400 V250 A
Rated short-time withstand current lcw8 kA
Rated operation power at AC-23, 400 V110 kW
Switching power at 400 V110 kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Product codes
SAPDHW179
STK3601717
PLC3601717
GTIN/EAN6417019232645
Manufacturer part numberOT200U03
Vendor material number3601717
Basic information
Package measurements (L x W x H)240 x 183 x 95 mm
Package volume4.172 l
Package weight1.577 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122233
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
The country of origin stated by the supplierFinland
