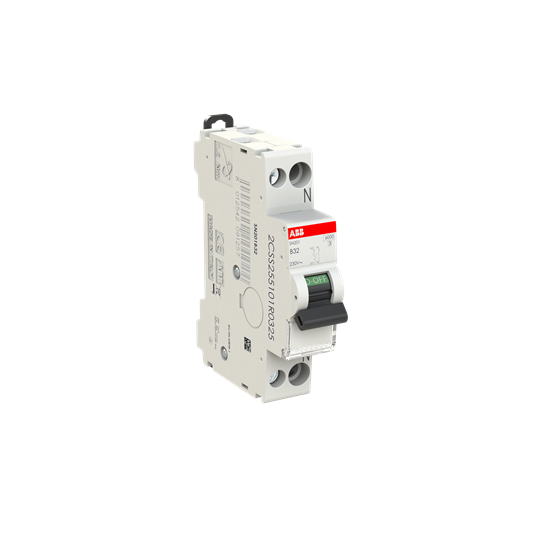

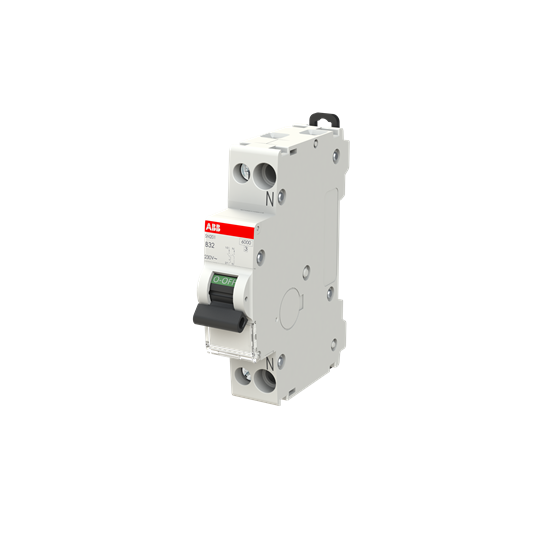

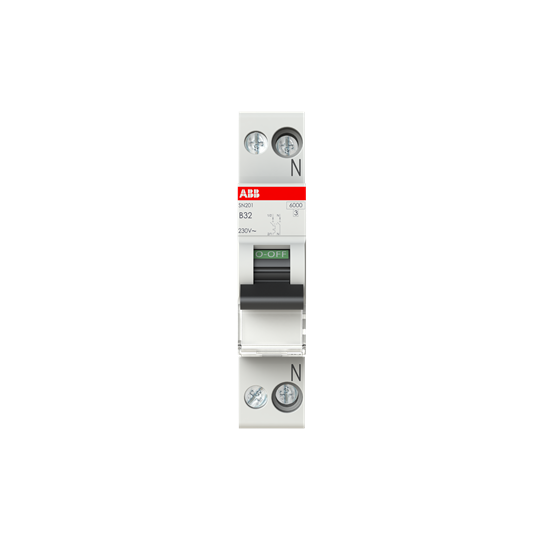

MINIATURE CIRCUIT BREAKE SN201 2-POLES 1+N B-CHAR. 32A
Product code
3217765
SN201
- 1P + N only in a single module
- Fully integrated into the proM family
- Wide range of additional accessories
- Individual identification labels make circuit breaker tracking easy
- Clear On-Off status indication with color codes
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth69 mm
Release characteristicB
Number of poles (total)2
Number of protected poles1
Rated current32 A
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50-60 Hz
Power loss6.7 W
Product codes
SAPCFP181
STK3217765
PLC3217765
GTIN/EAN8012542091257
Manufacturer part numberSN201-B32
Vendor material number3217765
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.126 l
Package weight0.11 kg
Base uniteach
Package units6 / 69 / 85
Package contents–
UNSPSC39121603
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
