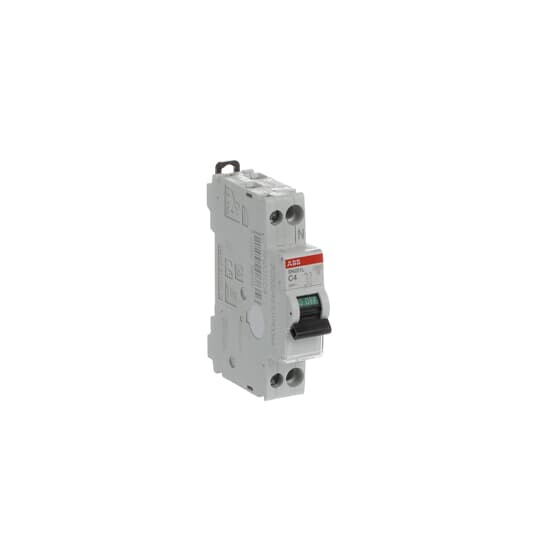

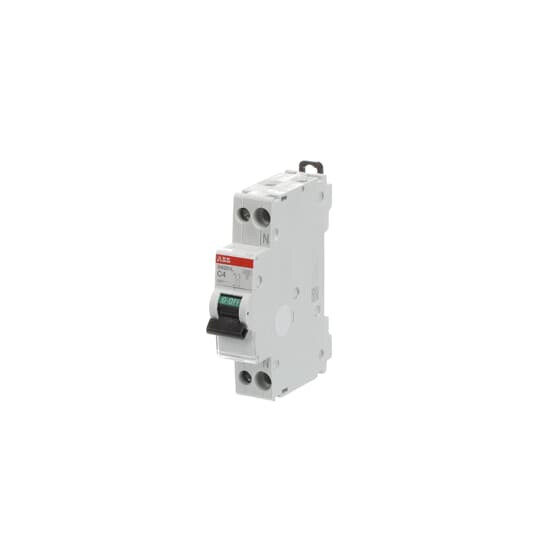

MINIATURE CIRCUIT BREAKE SN201 2-POLES 1+N B-CHAR. 4A
Product code
3217708
SN201
- 1P + N in a single module only
- Fully integrated into the proM family
- Wide range of additional accessories
- Individual identification labels make circuit breaker tracking easy
- Clear On-Off status indication with color codes
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth69 mm
Release characteristicC
Number of poles (total)2
Number of protected poles1
Rated current4 A
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V4.5 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V4.5 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6 kA
Frequency50-60 Hz
Power loss2.4 W
Product codes
SAPCFP174
STK3217708
PLC3217708
GTIN/EAN8012542088356
Manufacturer part numberSN201L-C4
Vendor material number3217708
