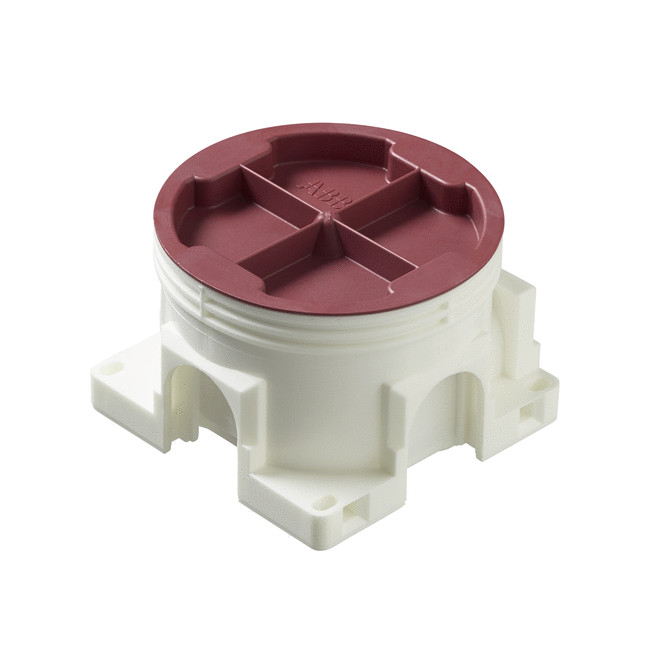

MOUNTING BOX AU 3.2 MULTIPACK 200PCS
Product code
1152334
Surface mount, recessed mounting. The housing sides have five push-button inserts, two of which are adjacent on the same side. Two base push-buttons can be attached to the base. The housings are connected to each other using the coupling component PMR474. Made from halogen-free material (IEC/61249-2-21) and meets the requirements of the filament test according to standard IEC/EN60670:2005 (850 °C). 200 pieces per bulk package. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for built-in mounting in the wall/ceiling (EC002601)
Mounting methodOther
ShapeRound
Construction typeDevice connection box (round/square)
ModelSingle
Provided with revolving ringno
Couplableyes
Equipped withNone
Diameter71 mm
Length71 mm
Width71 mm
Depth71-71 mm
Inner depth45 mm
For number of electric fittings1
Mounting switching equipmentScrewing
With screwsyes
Product codes
SAPDAS360
STK1152334
PLC1152334
GTIN/EAN6438199014784
Manufacturer part numberAU3.2-200
Vendor material number1152334
Basic information
Package measurements (L x W x H)397 x 397 x 492 mm
Package volume77.544 l
Package weight8 kg
Package units1 / 12
Package contents200 each
UNSPSC39121303
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
