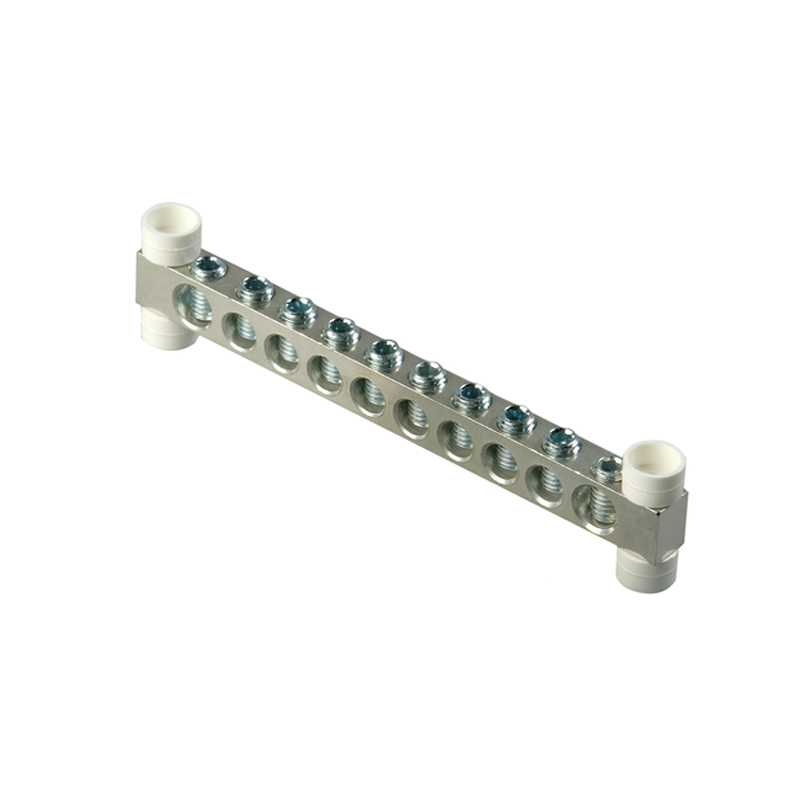

POTENTIAL-EQUALIZING BUSB AM4 MAX 10x70mm2 Cu
Product code
1913095
Potential equalizer bar, max. 70 mm² Cu
Potential equalization bars
The potential equalization bar AM4 is used for connecting internal protective earthings in buildings. The AM4 accommodates 8 conductors of 4–50 mm² and 2 conductors of 16–70 mm² in the end terminals. The body is tin-plated copper, the screws are zinc-coated steel, and the elevation parts are made of surface-current-resistant thermoplastic. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Equipotential bonding bar (EC001470)
Construction typeSurface mounting fix
ModelWithout covering cap
Insulatoryes
Explosion-tested versionno
Height173 mm
Width16 mm
Length37 mm
Number of connections round conductor total0
Number of connections round conductor 8 mm5
Number of connections round conductor 10 mm5
Number of connections round conductor 8-10 mm5
Material of contact railCopper
Surface of the contact railOther
Material of clampStainless steel 316 (V4A)
Surface of the clampUntreated
Product codes
SAPAAG657
STK1913095
PLC1913095
GTIN/EAN6410019130959
Manufacturer part numberAM4
Vendor material number1913095
Basic information
Package measurements (L x W x H)37 x 16 x 173 mm
Package volume0.102 l
Package weight0.254 kg
Base uniteach
Package units1 / 5 / 50 / 500
Package contents–
UNSPSC26121538
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
