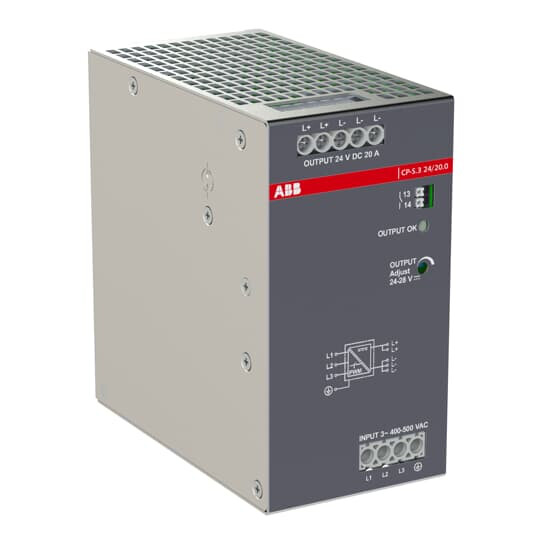

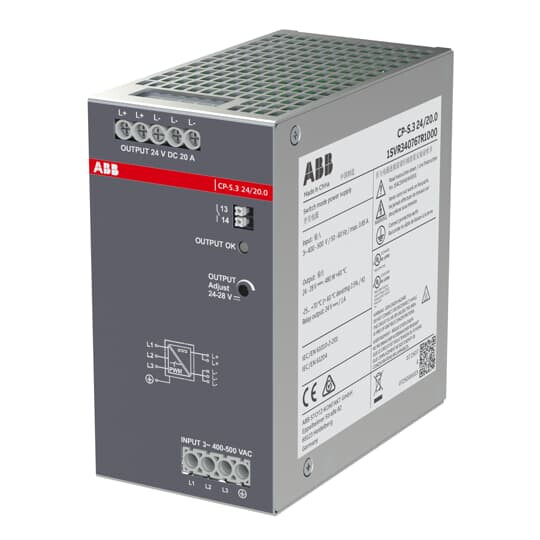

POWER SUPPLY 3-PH, 24V, 20.0A
Product code
2712913
3-phase CP-S.3 power supplies and high-voltage DC-DC converter CP-S.DC feature a high efficiency of 94% and a 150% power reserve for five seconds. Overtemperature protection, power factor correction, wide certified AC and DC input range, and comprehensive global approvals including maritime applications make the new CP-S.3 and CP-S.DC power supplies the preferred choice for numerous industrial applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)DC-power supply (EC002540)
Voltage type (supply voltage)AC/DC
1st secondary output voltage24-24 V
2nd secondary output voltage0 - 0 V
3rd secondary output voltage0 - 0 V
Max. output current 130 A
Max. output current 20 A
Max. output current 30 A
Secondary voltage adjustableno
Nominal value output voltage 124 V
Nominal value output voltage 20 V
Nominal value output voltage 30 V
Nominal value output current 120 A
Nominal value output current 20 A
Nominal value output current 30 A
Short-circuit-proofyes
Product codes
SAPDLW971
STK2712913
PLC2712913
GTIN/EAN4053546170245
Manufacturer part numberCP-S.3 24/20.0
Vendor material number2712913
Basic information
Package measurements (L x W x H)158 x 119 x 188 mm
Package volume3.535 l
Package weight1.52 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121004
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
