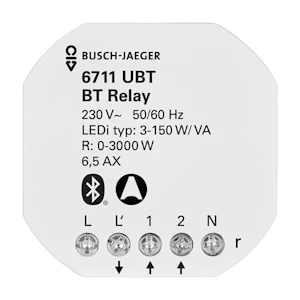

RELAY UNIT BT 6.5AX
Product code
2625001
Bluetooth relay compatible with Casambi (Bluetooth Low Energy) system, the relay can be controlled via the 6716 UBT button or the Casambi App. Can also be controlled with a standard toggle switch. Suitable for switching 230 V loads.
Nominal voltage 230 V.
Nominal frequency 50 Hz/60 Hz.
1 NO (normally open) output.
Nominal current 6.5 A.
Nominal power for resistive load 3000 W.
Nominal power for LED 150 W/VA.
IP20.
Operating temperature: -5 °C to 45 °C.
Dimensions 48x48x20 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electronic switch (EC001588)
ModelOther
Type of loadUniversal and LED Retrofit
Mounting methodFlush-mounted
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingMatt
ColourWhite
RAL-number (similar)9010
Transparentno
Nominal voltage230 V
Frequency9999999.999-9999999.999 Hz
Type of fasteningClamp mounting
Compatible with Apple HomeKitno
Compatible with Google Assistantno
Product codes
SAPDIH780
STK2625001
PLC2625001
GTIN/EAN4011395314982
Manufacturer part number6711 UBT
Vendor material number2625001
Basic information
Package measurements (L x W x H)73 x 73 x 36 mm
Package volume0.192 l
Package weight0.083 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39122325
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
