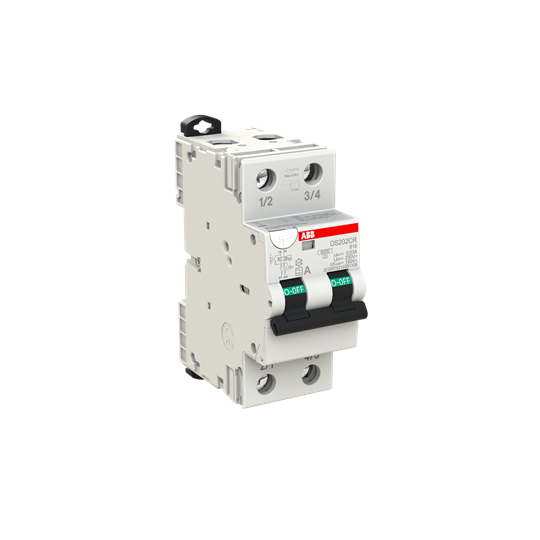

RESIDUAL CURRENT DEVIC DS202CR 2-POLES B-CHAR. 10A 30MA
Product code
3217309
2-pole B-curve 10A 30mA 10kA, 230VAC, Type A 2P protected This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earth leakage circuit breaker (EC000905)
Number of poles (total)2
Number of protected poles2
Rated voltage230 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated current10 A
Rated fault current0.03 A
Mounting methodDIN rail
Leakage current typeA
Current limiting class3
Power loss3.28 W
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-210 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Disconnection characteristicUndelayed
Product codes
SAPDCU862
STK3217309
PLC3217309
GTIN/EAN4022903033684
Manufacturer part number2CSR752140R1105
Vendor material number3217309
Basic information
Package measurements (L x W x H)86 x 36 x 72 mm
Package volume0.223 l
Package weight0.22 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121614
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
