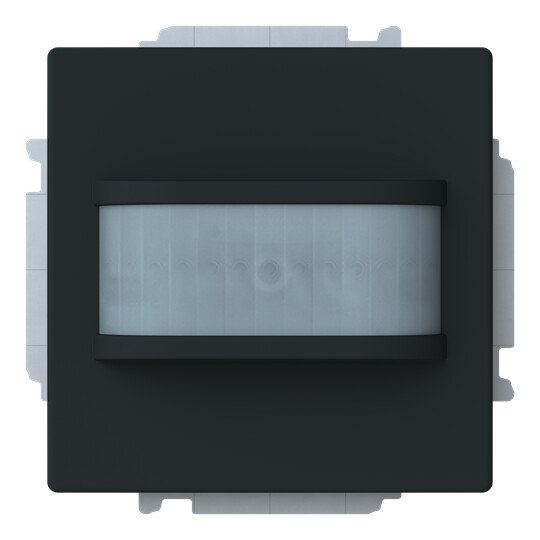

MOTION DETECTOR SAGA MOTION DETECTOR 180 MBLACK
Product code
2619496
In addition to the sensor element, the Comfort sensor has two additional buttons whose functions depend on the control panel in use. Functions: - Manual ON/OFF mode - Permanent ON/OFF mode. Detection area 180° flat, at an installation height of 1.1 m, approximately 12 m to the sides and approximately 12 m forward. Installation height 0.8 – 1.2 m. Detection area 180° flat, at an installation height of 1.1 m, approximately 12 m to the sides and approximately 12 m forward. Installation height 0.8 – 1.2 m. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Movement sensor/presence detector technologyPassive infrared
Constant light controlyes
HVAC-controlyes
Forced switch onyes
Forced switch offyes
Animal zoneyes
Creep-under protectionyes
Optimum mounting height1.1 m
Staircase light controlleryes
Bridging switchyes
Suitable for wireless transmissionyes
Remote operationyes
With remote controlyes
Response value sensitivity adjustableyes
Product codes
SAPDMC694
STK2619496
PLC2619496
GTIN/EAN4011395352694
Manufacturer part number64762 UC-885-510
Vendor material number2619496
Basic information
Package measurements (L x W x H)96 x 88 x 75 mm
Package volume0.634 l
Package weight0.197 kg
Base uniteach
Package units1
Package contents–
UNSPSC46171608
BrandABB
VendorABB OY ASENNUSTUOTTEET
