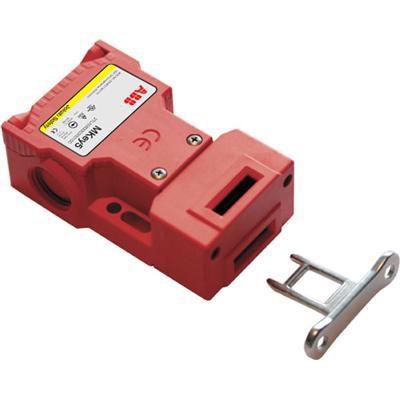

SAFETY INTERLOCK JOKAB SAFETY MKEY5,12N,2NC/1NO,IP67
Product code
2307345
No product description available.
Product details
Technical specifications
Product class (ETIM)Position switch with separate actuator (EC002592)
With status indicationno
Suitable for safety functionsyes
Width sensor58 mm
Height of sensor100.4 mm
Length of sensor34.5 mm
Forced openingyes
Number of safety auxiliary contacts0
Number of contacts as normally closed contact2
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Type of switching contactSlow-action switch
Rated operation current Ie at AC-15, 24 V3 A
Rated operation current Ie at AC-15, 125 V3 A
Rated operation current Ie at AC-15, 230 V3 A
Rated operation current Ie at DC-13, 24 V0.2 A
Product codes
SAPDGL755
STK2307345
PLC2307345
GTIN/EAN7350024466232
Manufacturer part number2TLA050003R0100
Vendor material number2307345
Basic information
Package measurements (L x W x H)40 x 145 x 65 mm
Package volume0.377 l
Package weight0.205 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121524
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
