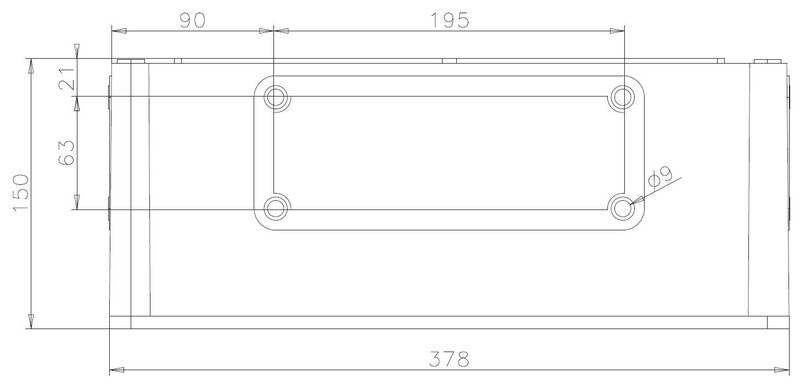

SAFETY SWITCH 3-P 132kW 400V AC-23A
Product code
3642406
Enclosed safety switches can create a safe working environment to reduce the risk of electrical and mechanical accidents. Our range includes side- and front-operated safety switches from 16 amperes to 1,200 amperes (IEC), with power ratings from 7.5 to 1,200 kW at 690 V (AC-23A). The enclosures are manufactured from plastic, steel, acid-resistant stainless steel, and aluminum. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage1000-1000 V
Rated permanent current Iu250 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V132 kW
Rated short-time withstand current lcw8 kA
Rated operation power at AC-23, 400 V132 kW
Switching power at 400 V132 kW
Product codes
SAPAMK920
STK3642406
PLC3642406
GTIN/EAN6417019063256
Manufacturer part number1SCA022276R8830
Vendor material number3642406
Basic information
Package measurements (L x W x H)710 x 415 x 325 mm
Package volume95.761 l
Package weight9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
The country of origin stated by the supplierFinland
