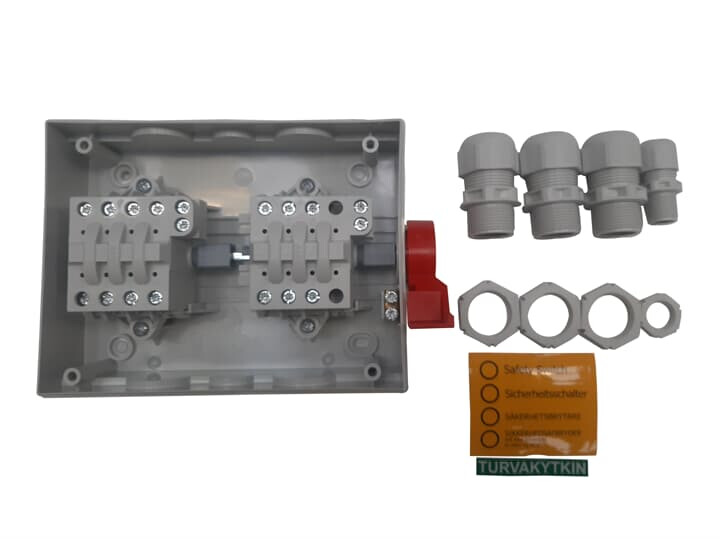

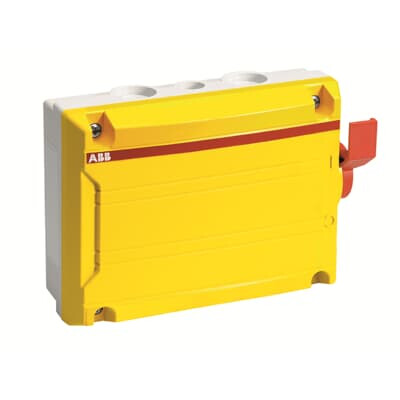

SAFETY SWITCH BWS625YTPN,11KW 6-NAP IP65
Product code
3601596
ENCL. SW#BWS 625Y TPN
Enclosed safety switches can create a safe working environment to reduce the risk of electrical and mechanical accidents. Our range includes side- and front-operated safety switches from 16 amperes to 1,200 amperes (IEC), with power ratings from 7.5 to 1,200 kW at 690 V (AC-23A). The enclosures are manufactured from plastic, steel, acid-resistant stainless steel, and aluminum. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690-690 V
Rated permanent current Iu32 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V40 A
Rated operation power at AC-3, 400 V11 kW
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V11 kW
Number of poles6
Product codes
SAPAIU980
STK3601596
PLC3601596
GTIN/EAN7392696424288
Manufacturer part numberBWS625YTPN
Vendor material number3601596
Basic information
Package measurements (L x W x H)65 x 190 x 130 mm
Package volume1.606 l
Package weight0.54 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
