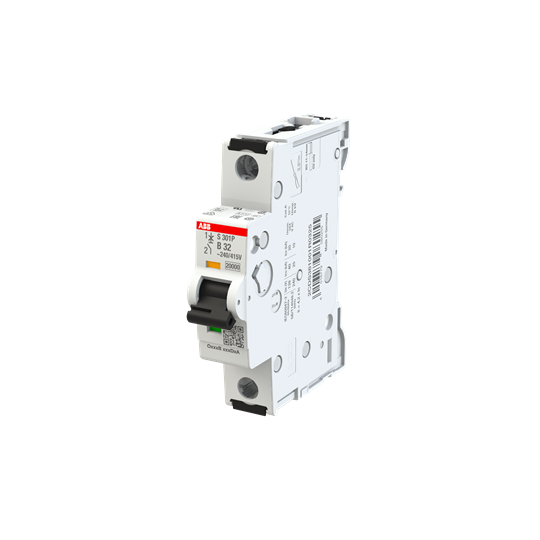

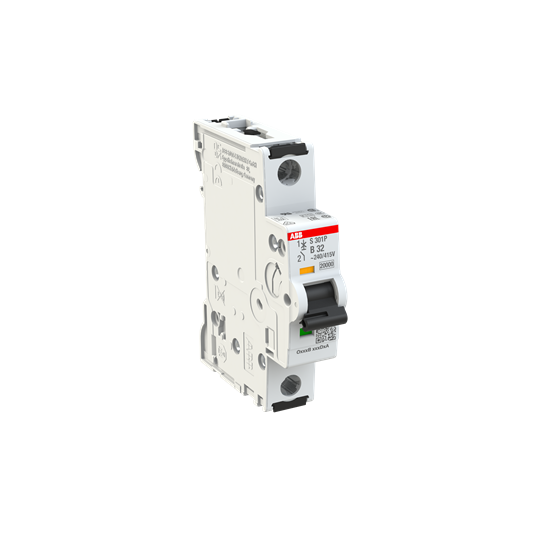

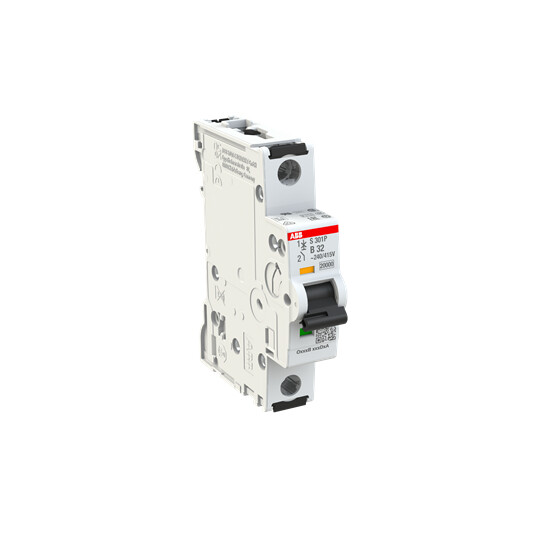

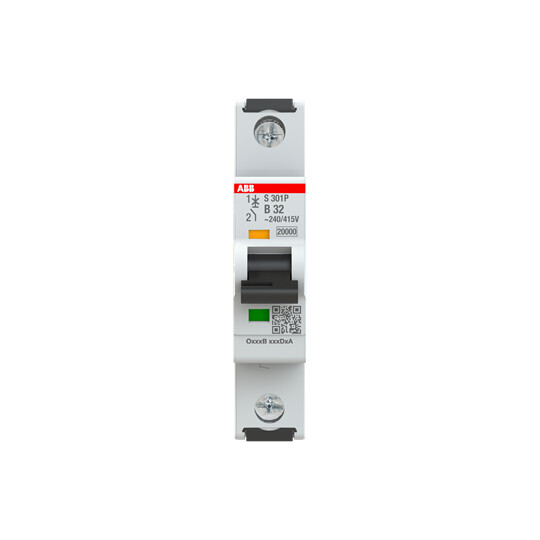

CIRCUIT BREAKER S300P 1-POLE B-CHAR. 32A
Product code
3212151
System pro M compact® S300P circuit breakers comply with IEC/EN 60947-2, IEC/EN 60898-1, UL 1077, and CSA 22.2 No. 235, protecting installations in commercial and industrial applications with a breaking capacity up to 25 kA. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth69 mm
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current32 A
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Frequency50-60 Hz
Power loss2.9 W
Flush-mounted installationno
Concurrently switching neutral conductorno
Overvoltage category4
Product codes
SAPDCT921
STK3212151
PLC3212151
GTIN/EAN4016779080255
Manufacturer part number2CDS381001R0325
Vendor material number3212151
Basic information
Package measurements (L x W x H)88 x 17.5 x 67.6 mm
Package volume0.104 l
Package weight0.124 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
