ABB SMART BUILDINGS

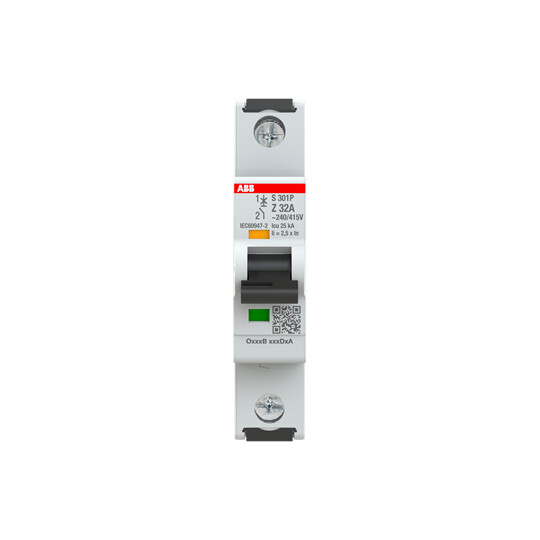

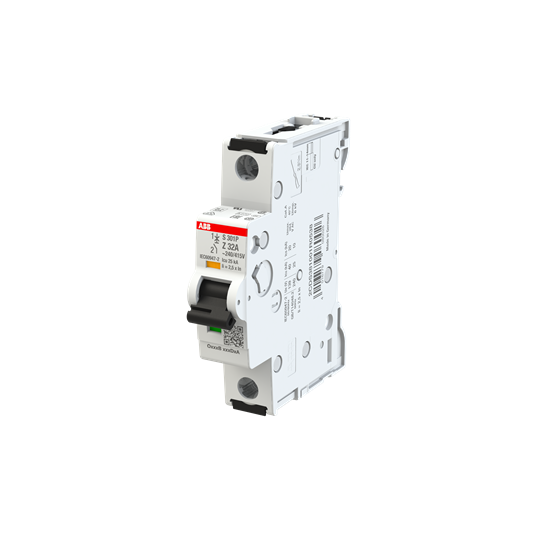

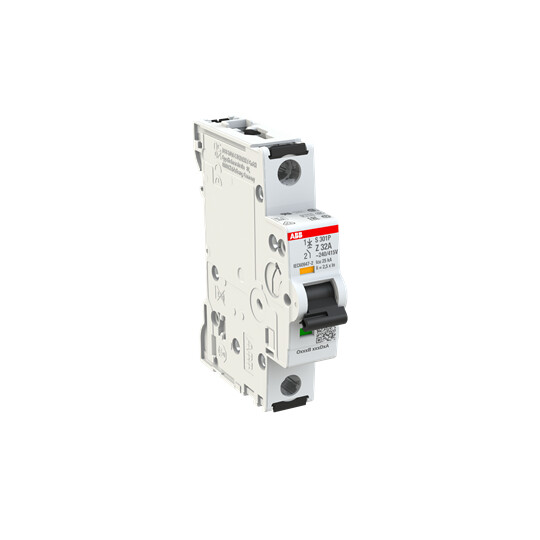

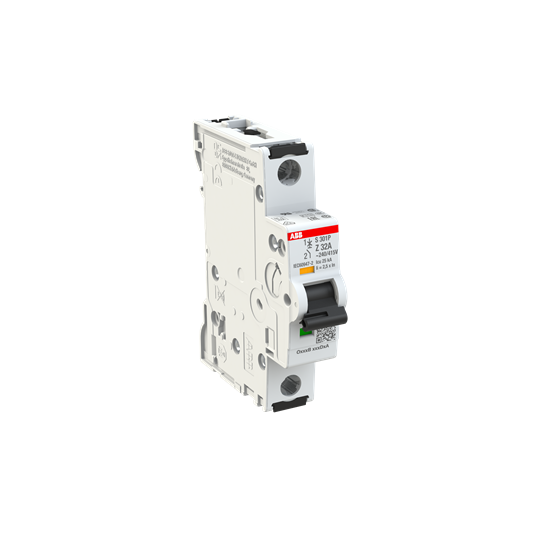

CIRCUIT BREAKER S300P 1-POLE Z-CHAR. 32A
Product code
3212490
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicZ
Number of poles (total)1
Number of protected poles1
Rated current32 A
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Frequency50 ... 60 Hz
Power loss3.1 W
Flush-mounted installationfalse
Concurrently switching neutral conductorfalse
Product codes
SAPDCT944
PLC3212490
STK3212490
GTIN/EAN4016779080026
Manufacturer part number2CDS381001R0538
Vendor material number3212490
Basic information
Package measurements (L x W x H)88 x 17.5 x 67.6 mm
Package volume0.104 l
Package weight0.124 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
