ABB SMART BUILDINGS

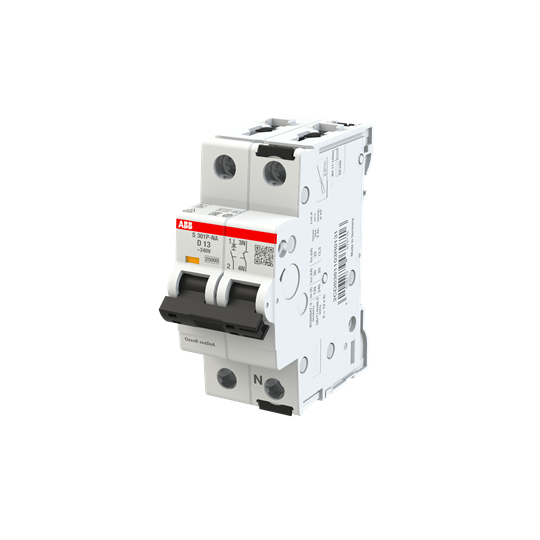

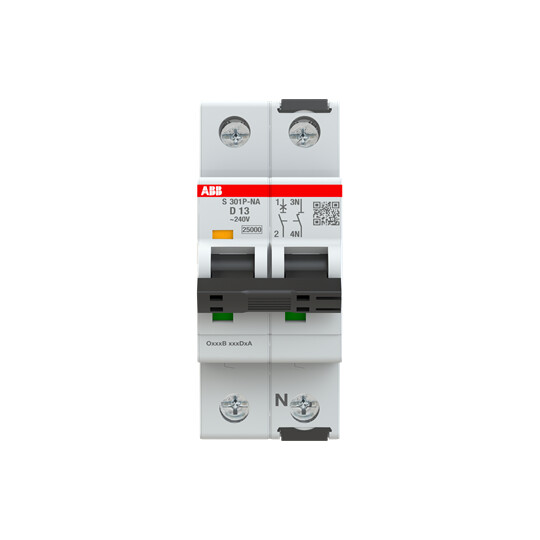

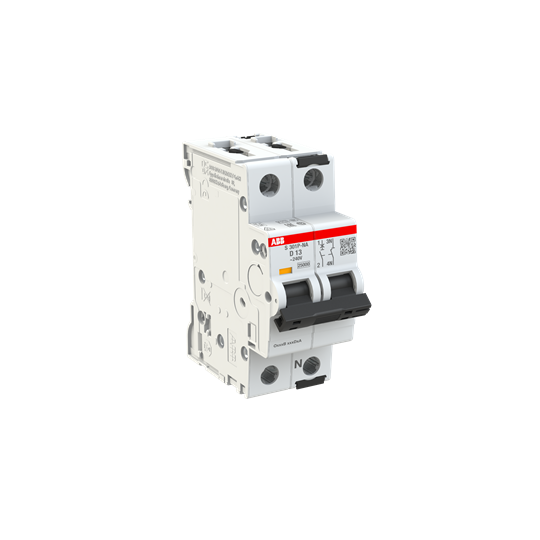

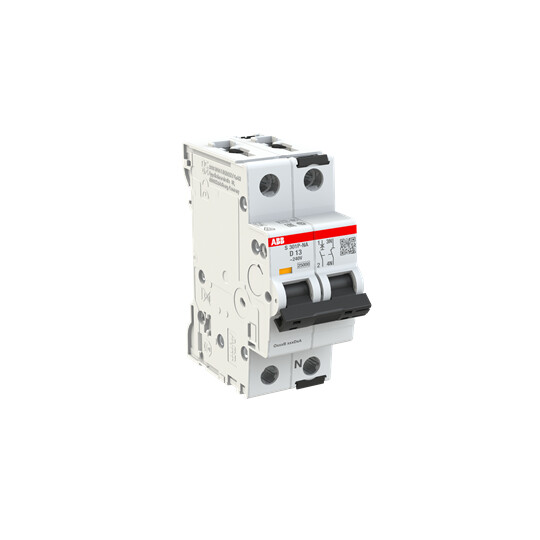

CIRCUIT BREAKER S300P 2-POLE 1+N D-CHAR. 13A
Product code
3216200
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicD
Number of poles (total)2
Number of protected poles1
Rated current13 A
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Frequency50 ... 60 Hz
Power loss2.6 W
Flush-mounted installationfalse
Concurrently switching neutral conductortrue
Product codes
SAPDCT977
PLC3216200
STK3216200
GTIN/EAN4016779079716
Manufacturer part number2CDS381103R0131
Vendor material number3216200
Basic information
Package measurements (L x W x H)88 x 35 x 69 mm
Package volume0.213 l
Package weight0.248 kg
Base uniteach
Package units1 / 60
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
