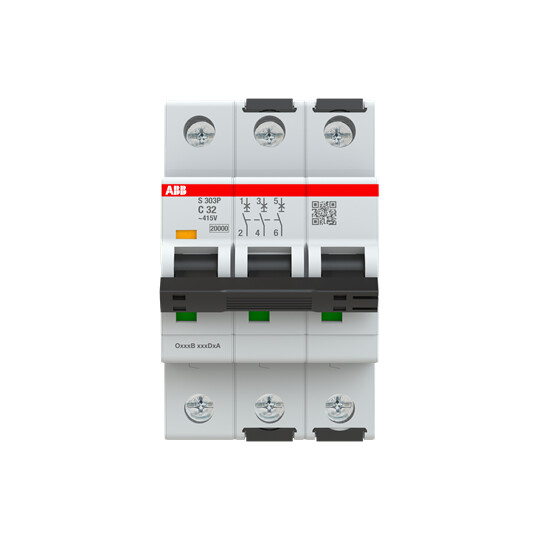

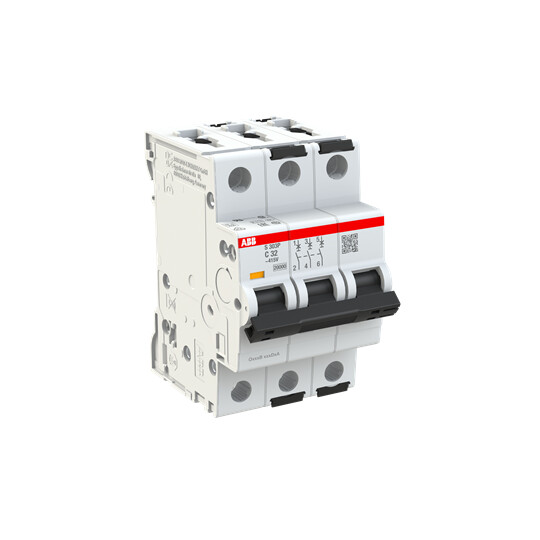

CIRCUIT BREAKER S300P 3-POLE C-CHAR. 32A
Product code
3212297
System pro M compact® S300P circuit breakers comply with IEC/EN 60947-2, IEC/EN 60898-1, UL 1077, and CSA 22.2 No. 235, protecting installations in commercial and industrial applications with a breaking capacity up to 25 kA. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth69 mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current32 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Frequency50-60 Hz
Power loss8.7 W
Flush-mounted installationno
Concurrently switching neutral conductorno
Product codes
SAPDCU167
STK3212297
PLC3212297
GTIN/EAN4016779077873
Manufacturer part number2CDS383001R0324
Vendor material number3212297
Basic information
Package measurements (L x W x H)88 x 52.5 x 69 mm
Package volume0.319 l
Package weight0.372 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
