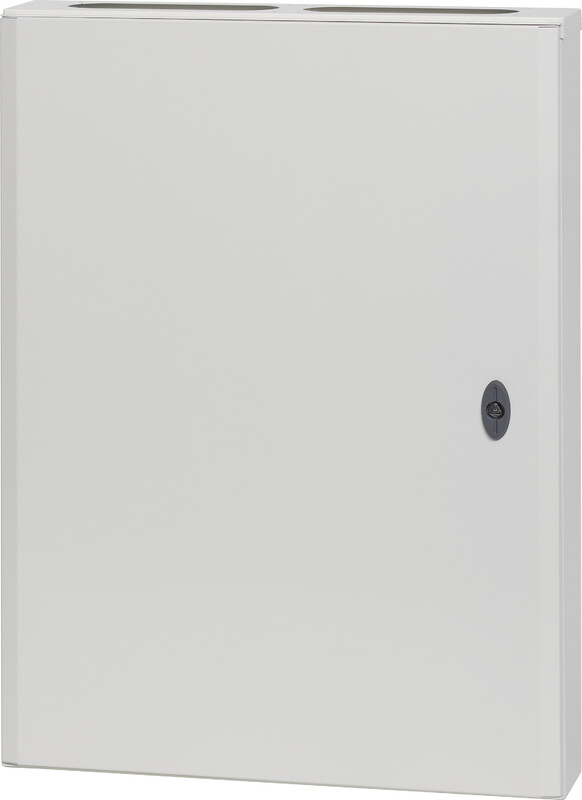

DISTRIBUTION BOARD FE NÄPSÄ RK80-3V30U 80A IP34
Product code
3411098

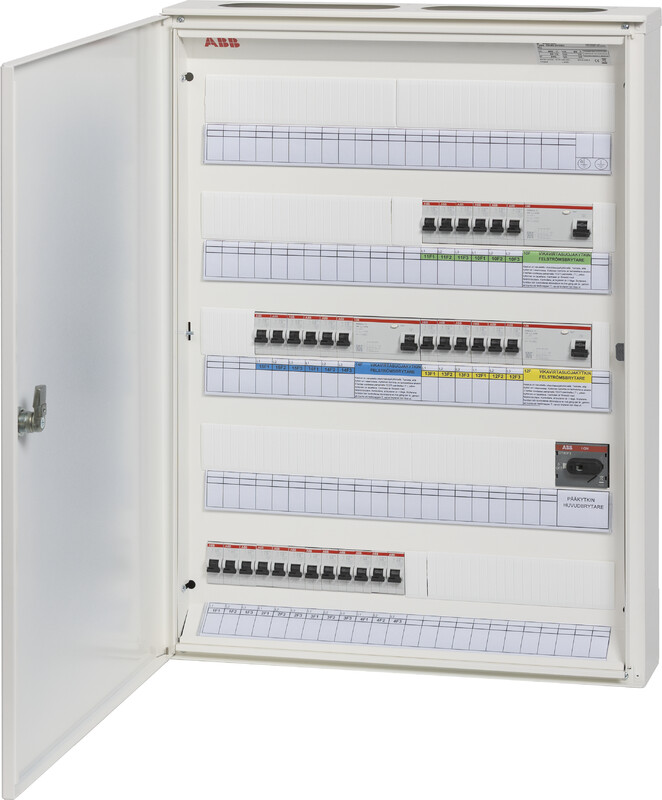

3 pieces of 40A 4-pole residual current circuit breakers
behind which are 3 pieces of 1C10 and 1C16.
12 direct outputs (3 pieces of 1B10, 6 pieces of 1B16, 3 pieces of 1C16).
Space reserved for 55 modules.

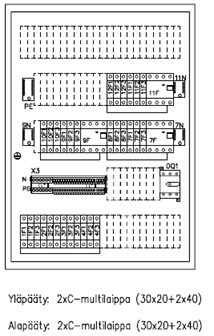

Both top and bottom ends have 2 pieces of C-multilamellas
(30x20 and 2x40).
Includes a door.
Color shade RAL9010 white. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Small distribution board equipped (EC002288)
Mounting methodSurface mounted
Number of phases3
ProtectionMiniature-/earth leakage circuit breaker
Total number of groups30
Number of direct groups12
Number of light groups0
Number of earth leakage switches 30 mA3
Number of earth leakage switches 300 mA0
Number of poles main switch3
Cooker group suitable as power current groupno
With socket outletno
With bell transformerno
Overvoltage protectionno
Housing materialSteel
Degree of protection (IP)IP34
Product codes
SAPDMK842
STK3411098
PLC3411098
GTIN/EAN6429811178151
Manufacturer part numberRK80-3V30U
Vendor material number3411098
Basic information
Package measurements (L x W x H)125 x 530 x 770 mm
Package volume51.012 l
Package weight19 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121105
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
The country of origin stated by the supplierFinland
