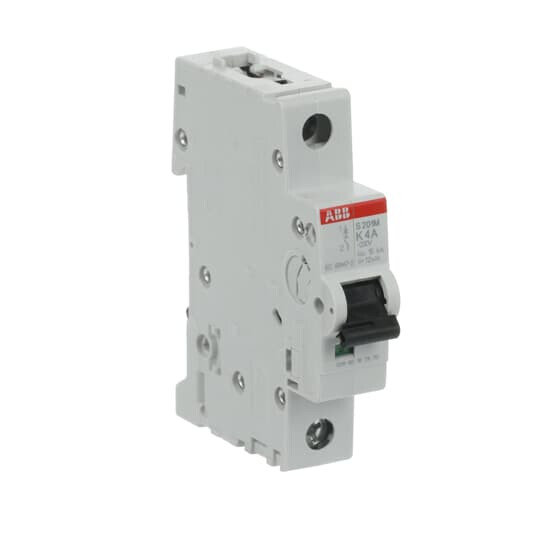

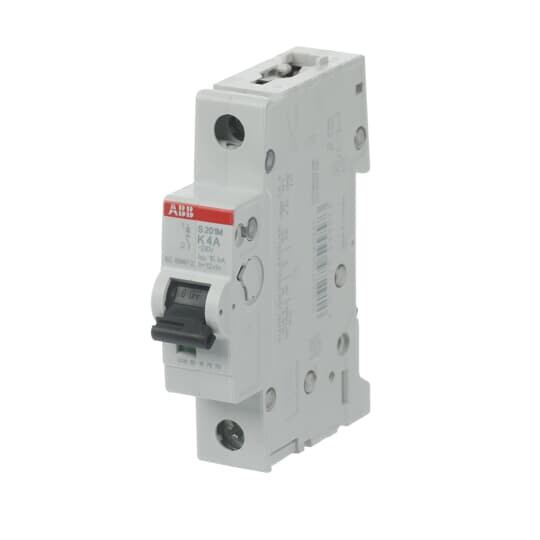

MINIATURE CIRCUIT BREAKERS200M 1-POLE K-CHAR. 4A
Product code
3210608
No product description available.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth69 mm
Release characteristicK
Number of poles (total)1
Number of protected poles1
Rated current4 A
Rated voltage230 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50-60 Hz
Power loss1.7 W
Product codes
SAPDCT177
STK3210608
PLC3210608
GTIN/EAN4016779599573
Manufacturer part number2CDS271001R0337
Vendor material number3210608
Basic information
Package measurements (L x W x H)88 x 17.5 x 69 mm
Package volume0.106 l
Package weight0.125 kg
Base uniteach
Package units10 / 120 / 3840
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
