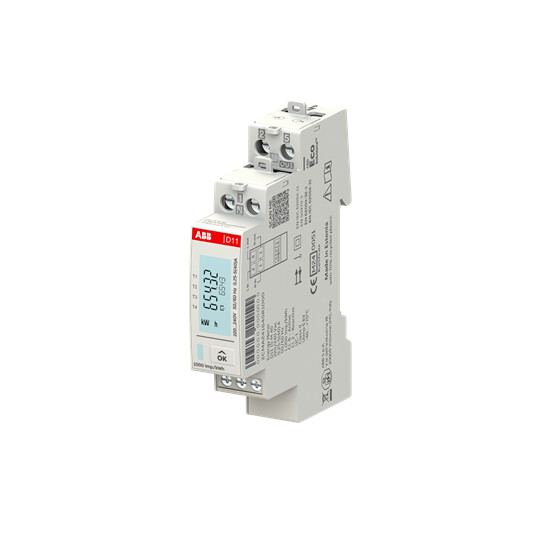

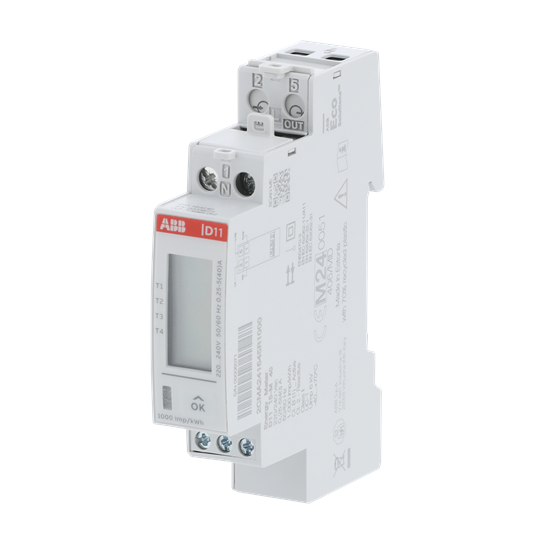

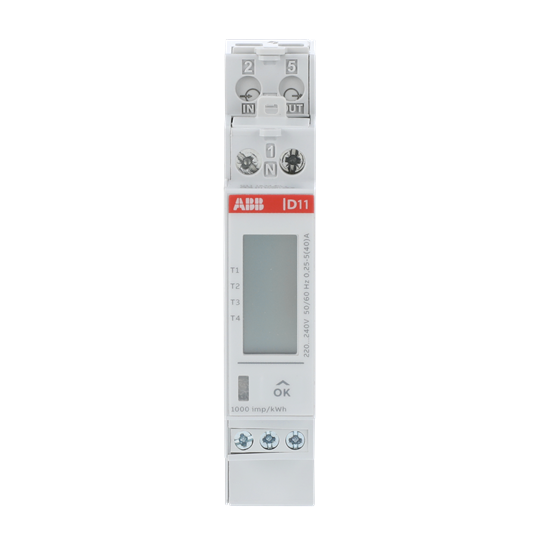

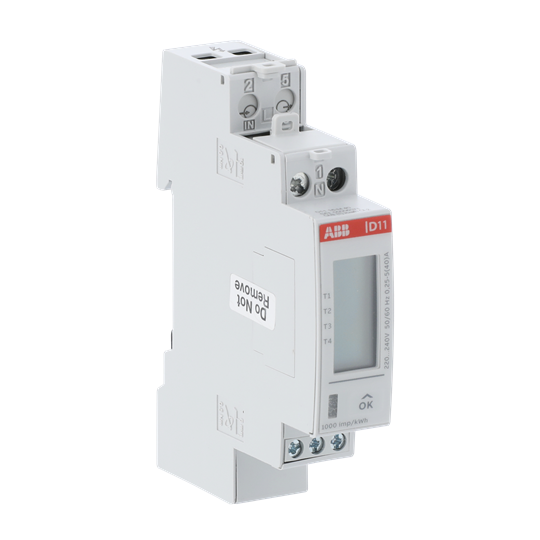

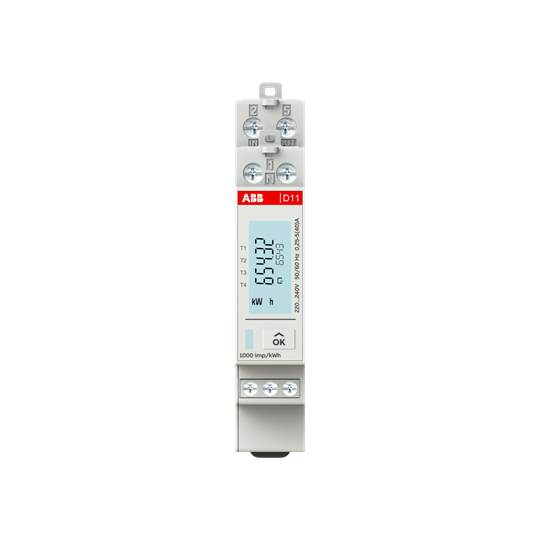

ENERGY METER ABB 1P, 40A, MID CL.B, PULSE
Product code
6719072
Single-phase electricity meter, 40 A, 230 VAC, directly connected, accuracy class B (class 1), MID approved, bidirectional measurement. Reactive energy measurement, accuracy class 2. 4-tariff measurement. 1 input and 1 output, max 40 VDC (pulse/alert output). Other electrical quantities: power, voltage, current, frequency, power factor and cosphi. 1 DIN module. Operating temperature -40…+70 °C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electricity meter (EC001506)
Type of meterElectronic
Nominal current (In)40 A
Max. current (Imax)40 A
Frequency50 - 60 Hz
Power consumption0.69 W
Accuracy classB
Pole typeSingle phase
ModelDirect measurement
Tariff typeTwo-tariff
Tariff controlInternal/external
Measurement type load profileno
Escapement mechanismyes
Calibratedyes
ApprovalMeasuring Instruments Directive
Pulse outputElectrical
Product codes
SAPDFP723
STK6719072
PLC6719072
GTIN/EAN8012542635451
Manufacturer part numberD11-15-M-40
Vendor material number6719072
Basic information
Package measurements (L x W x H)22 x 96 x 81 mm
Package volume0.171 l
Package weight0.078 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
