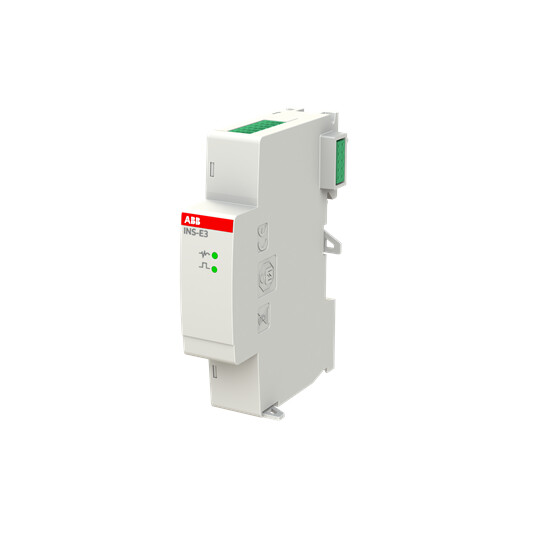

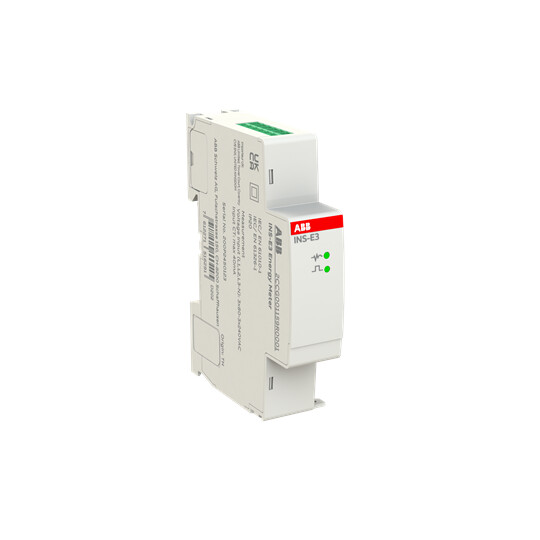

ENERGY METER ABB INSITE ENERGY METER MODULE - 4
Product code
6719027
Energy measurement module, 3-phase indirect, to be used with CTS-1 current transformers, Insite SCU200 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Energy management controller (EC002758)
ApplicationPower quality
Supply voltage240 - 240 V
Number of phases1
Power0.007 kW
Rated operation current Ie at AC-10.7 A
Rated operation current Ie at AC-30.7 A
Supporting protocol for CANno
Supporting protocol for Modbusyes
With communication interface Ethernetno
With communication interface RS-232no
With communication interface RS-485no
Width17.4 mm
Depth64.9 mm
Height87 mm
Product codes
SAPDEX441
STK6719027
PLC6719027
GTIN/EAN7612271516291
Manufacturer part numberINS-E3
Vendor material number6719027
Basic information
Package measurements (L x W x H)87 x 65 x 18 mm
Package volume0.102 l
Package weight0.084 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
