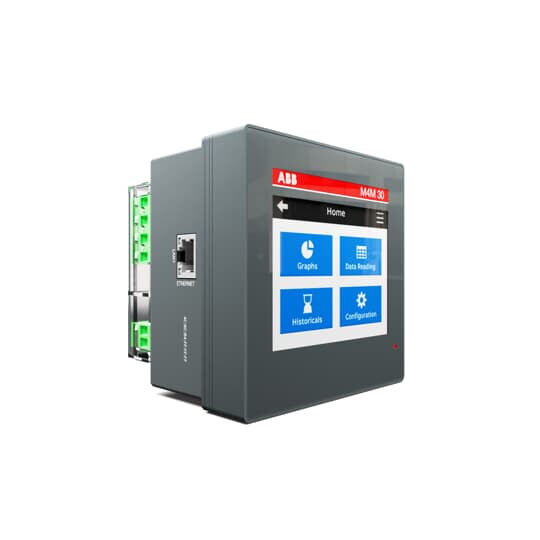

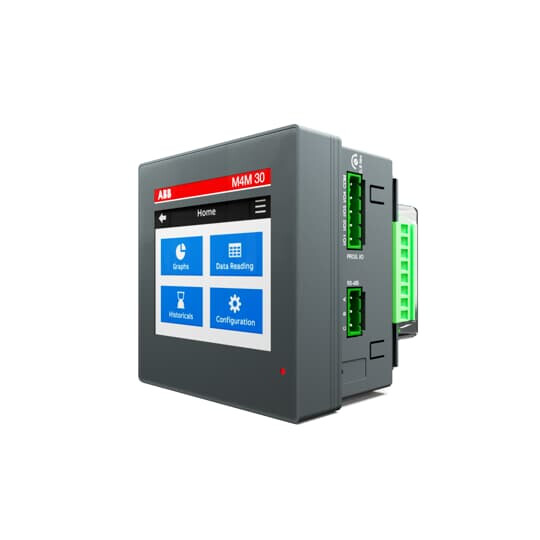

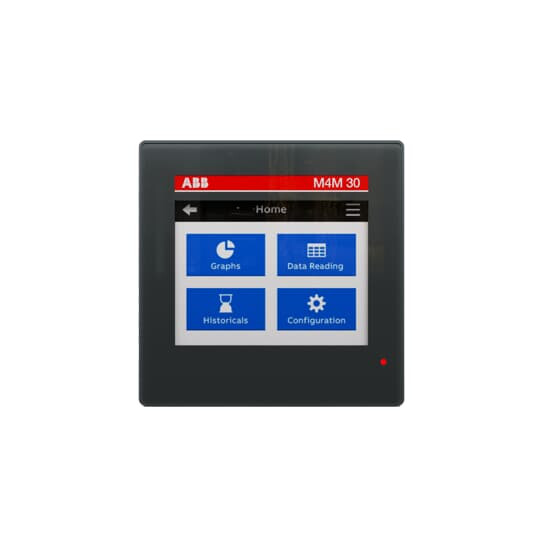

ENERGY METER PANEL ABB 3P 5A MID CLC 6T 4IO ETHERNET
Product code
6719021
Network analyzer MID-approved, 3-phase, 6A 690 VAC, current transformer connected, active energy class C (0.5), 6-tariff, 4-quadrant measurement. Electrical parameters: U, I, P, Q, S, PF, f, THD. Individual harmonics up to 40th. Network asymmetry and waveform. Real-time clock and logging functions: trend, load profile. 4 configurable inputs/outputs 5-240 V AC/DC. Auxiliary voltage 48-250 V AC/DC. Panel mounting 96x96 mm, IP54. Operating temperature -25…+70 °C. Modbus TCP This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electricity meter (EC001506)
Type of meterElectronic
Nominal current (In)6 A
Max. current (Imax)6 A
Nominal voltage (Un) N-L50-400 V
Nominal voltage (Un) L-L87-690 V
Frequency50-60 Hz
Power consumption10 W
Accuracy classC
Pole typeThree conductor/four conductor
ModelMeasurement transformer
Energy typeEffective power and reactive power
Suitable forPurchase
Tariff typeMulti-tariff
Tariff controlInternal/external
Measurement type load profileyes
Product codes
SAPDAZ695
STK6719021
PLC6719021
GTIN/EAN8012542390459
Manufacturer part numberM4M30-M-ETHERNET
Vendor material number6719021
Basic information
Package measurements (L x W x H)78 x 96 x 96 mm
Package volume0.719 l
Package weight0.355 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
