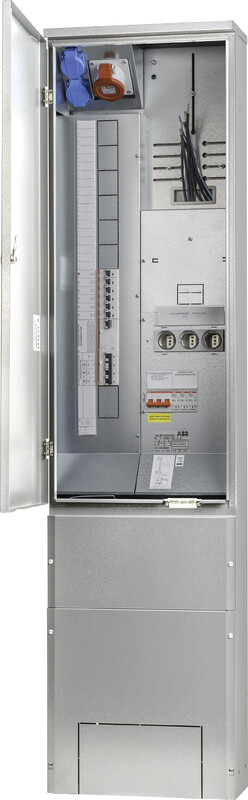

METERING PANEL, FE NÄPSÄ 1T-MK50J-EVC-O-U 1T 50A Y IP34
Product code
3411096
1-T metering cabinet on a base 400x1600x170mm, VVSK-protected sockets: 2x116 and 1x316. Remote reading model. Equipped with Class T surge protection, 4-pole residual current device for the charging station supply, and space reserved for different EV load management systems.
The Näpsä-EVC outdoor metering cabinet enables the use of various load management systems. There is no need to decide on the type of electric vehicle charging station during the construction phase.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Meter cabinet equipped (EC000262)
Rated current50 A
Number of meter boards1
Connection space, power sideWith clamps
Mounting methodSurface mounted
MaterialSteel
ColourGrey
RAL-number7035
With mounting plateyes
Degree of protection (IP)IP3X
Width400 mm
Height1600 mm
Depth170 mm
Product codes
SAPDKY050
STK3411096
PLC3411096
GTIN/EAN6429811178076
Manufacturer part number1T-MK50J-O-EVC-U
Vendor material number3411096
Basic information
Package measurements (L x W x H)180 x 440 x 1630 mm
Package volume129.096 l
Package weight32 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121105
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
The country of origin stated by the supplierFinland
