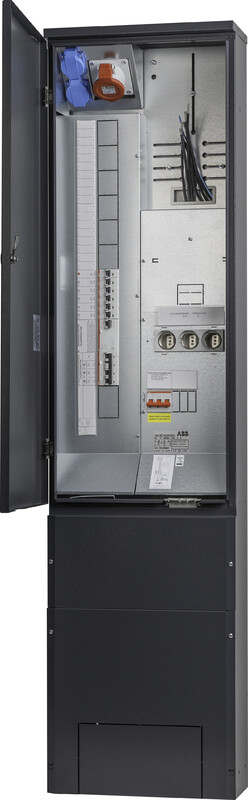

METERING PANEL, FE NÄPSÄ 1T-MK50J-EVC-U-B 1T 50A IP34
Product code
3411095
1-T metering center on a base of 400x1600x170mm, VVSK-protected outlets: 2x116 and 1x316. Remote reading model. Space reserved for surge protection, 4-pole residual current device for the charging station supply, and space reserved for a different EV load management system.
The Näpsä-EVC -external metering center enables the use of different load management systems. During construction, it is not necessary to decide yet which type of electric vehicle charging station to purchase.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Meter cabinet equipped (EC000262)
Rated current50 A
Number of meter boards1
Connection space, power sideWith clamps
Mounting methodSurface mounted
MaterialSteel
ColourGrey
RAL-number7024
With mounting plateyes
Degree of protection (IP)IP3X
Width400 mm
Height1600 mm
Depth170 mm
Product codes
SAPDKY051
STK3411095
PLC3411095
GTIN/EAN6429811178069
Manufacturer part number1T-MK50J-EVC-U-B
Vendor material number3411095
Basic information
Package measurements (L x W x H)180 x 440 x 1630 mm
Package volume129.096 l
Package weight34.4 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121105
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
The country of origin stated by the supplierFinland
