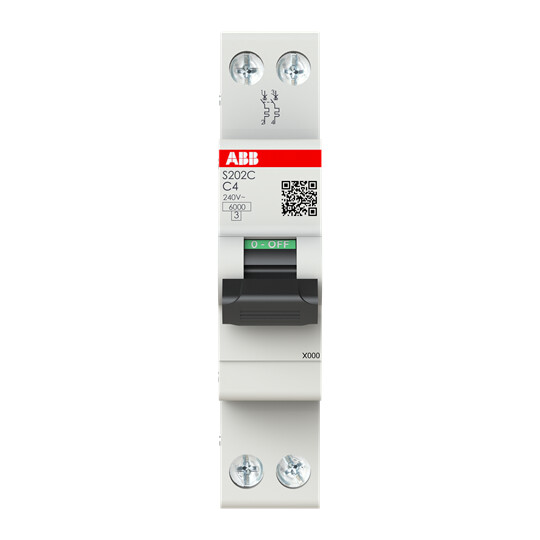

MINIATURE CIRCUIT BREAKER S200C 2P C 4A
Product code
3217720
S202C: 2-pole, 1-module. Function: Protection of circuits against overloads and short circuits. Applications: OEM equipment manufacturers, residential and commercial buildings. Standard: IEC/EN 60898-1 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth69.4 mm
Release characteristicC
Number of poles (total)2
Number of protected poles2
Rated current4 A
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Frequency50 - 60 Hz
Power loss2.6 W
Current limiting class3
Overvoltage category3
Pollution degree2
Product codes
SAPDNF910
STK3217720
PLC3217720
GTIN/EAN8012542735052
Manufacturer part numberS202C-C4
Vendor material number3217720
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.126 l
Package weight0.12 kg
Base uniteach
Package units6 / 72
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
