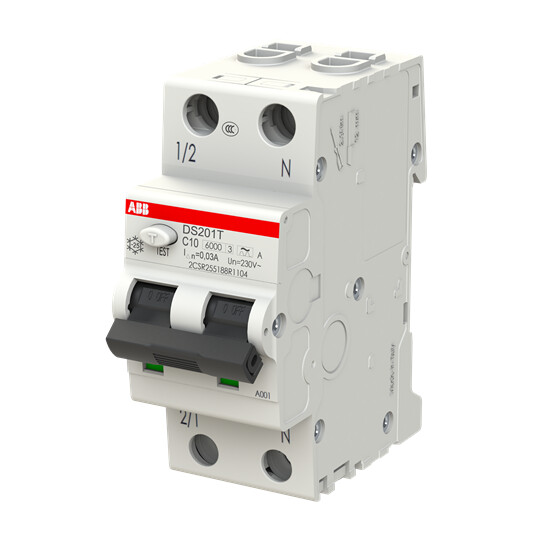

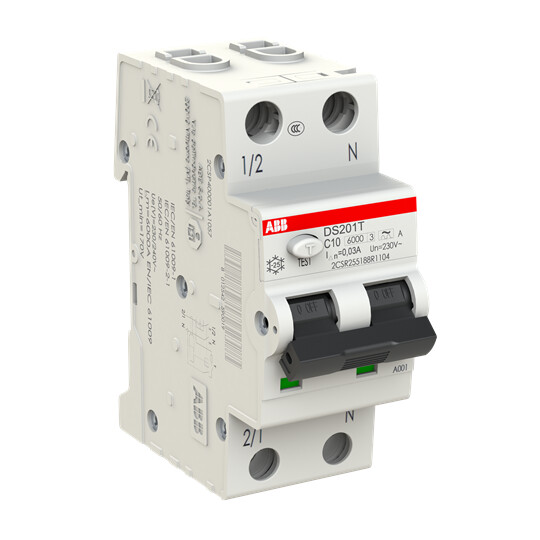

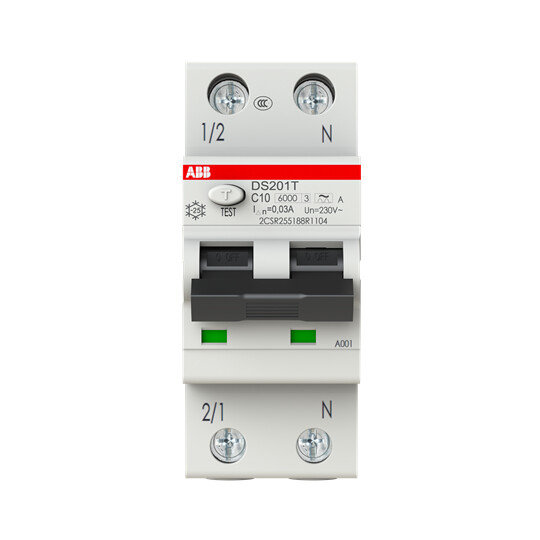

RCBO DS201 2-POLES C-CHAR. 10A 30MA
Product code
3217780
No product description available.
Product details
Technical specifications
Product class (ETIM)Earth leakage circuit breaker (EC000905)
Number of poles (total)2
Number of protected poles1
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current10 A
Rated fault current0.03 A
Mounting methodDIN rail
Leakage current typeA
Current limiting class3
Power loss2.3 W
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-210 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Disconnection characteristicUndelayed
Product codes
SAPDNQ352
STK3217780
PLC3217780
GTIN/EAN8012542590019
Manufacturer part numberDS201TC10A30
Vendor material number3217780
Basic information
Package measurements (L x W x H)80 x 40 x 106 mm
Package volume0.339 l
Package weight0.225 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
