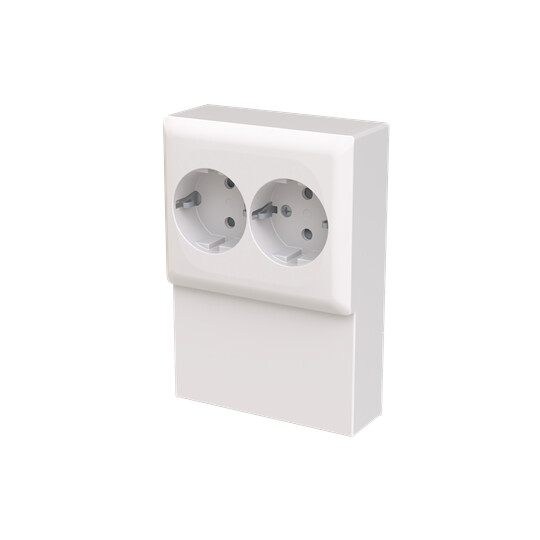

SOCKET OUTLET SAGA SCHUKO 2-G SCREWLESS LATH, WHI
Product code
2480305
The SAGA™ product is manufactured using bio-based plastic and is produced carbon neutrally in Finland. The socket box has terminals for each contact, and up to 4 wires can be connected to each (branching capability). The terminals are approved for ML and MK wires. No potential-free terminals. Child safety covers are integrated into the socket box housing. IP21 protection is achieved only if the cable is fed from below. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Protective contactEarthing clips
Number of active contacts (round)2
Number of active contacts (flat)0
Number of active contacts (square)0
With signal lampno
Number of ports USB-A0
Number of ports USB-C0
Number of socket outlets0
Socket outlets phase-separatedno
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typePush-in clamp
Product codes
SAPDDG875
STK2480305
PLC2480305
GTIN/EAN6438199012179
Manufacturer part number402EL-916
Vendor material number2480305
Basic information

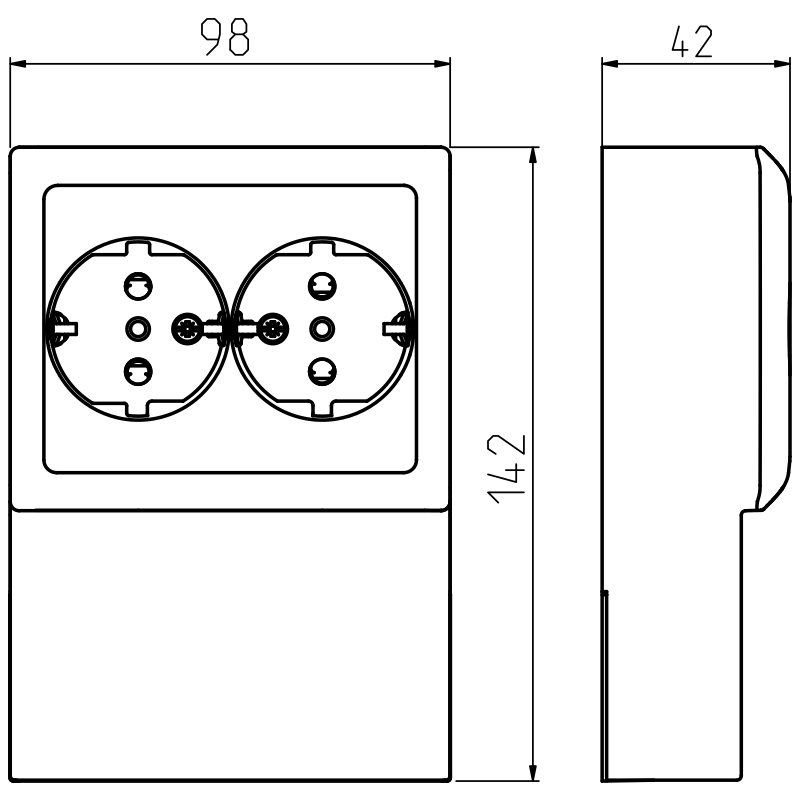

Package measurements (L x W x H)142 x 98 x 42 mm
Package volume0.584 l
Package weight0.148 kg
Base uniteach
Package units1 / 10 / 90 / 630
Package contents–
UNSPSC39121308
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
