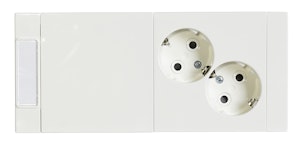

SOCKET OUTLET UNIT PRODUCT 2XSHUKO, WHITE
Product code
1406310
Socket outlet unit, ProDuct, 2xShuko, white
Socket Group
The socket group is a pre-assembled, internally connected unit that is mounted onto a channel by pressing. The connection is made in a junction box equipped with a 3-pin connector for extending the group cable. The connectors are approved for ML and MK cables. The entire socket group can be connected with a single socket connection task, and the installation of the entire group is easier and faster than traditional socket installation. The socket housing connectors are spring connectors. This product description is an automated translation of the original Finnish description.
The socket group is a pre-assembled, internally connected unit that is mounted onto a channel by pressing. The connection is made in a junction box equipped with a 3-pin connector for extending the group cable. The connectors are approved for ML and MK cables. The entire socket group can be connected with a single socket connection task, and the installation of the entire group is easier and faster than traditional socket installation. The socket housing connectors are spring connectors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Protective contactEarthing clips
Number of active contacts (round)2
Number of active contacts (flat)0
Number of active contacts (square)0
With signal lampno
Number of ports USB-A0
Number of ports USB-C0
Number of socket outlets0
Socket outlets phase-separatedno
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typePush-in clamp
Product codes
SAPAMH661
STK1406310
PLC1406310
GTIN/EAN6438199002057
Manufacturer part numberAUD11-214
Vendor material number1406310
Basic information
Package measurements (L x W x H)195 x 85 x 50 mm
Package volume0.829 l
Package weight0.18 kg
Base uniteach
Package units1 / 25 / 350
Package contents–
UNSPSC39121308
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
