SOCKET OUTLET W USB IMPRESSIVO SOCKET OUTLET W USB
Product code
2406042

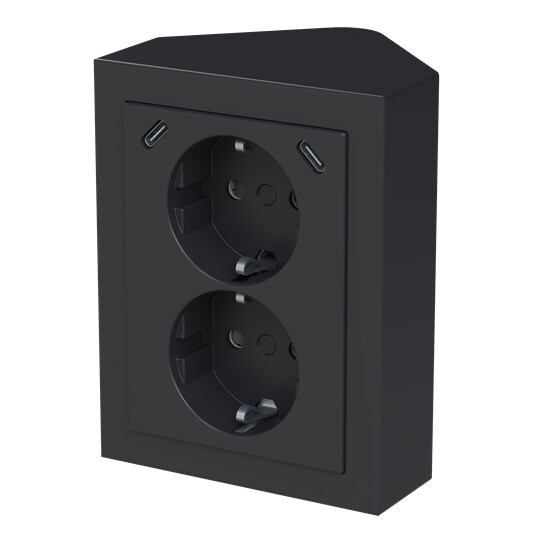

Impressivo® 2-part corner socket with two built-in USB-C charging ports.
This modern double socket with two USB-C charging ports makes home charging solutions easier and neater. Charge phones, tablets, and other USB-C devices directly from the wall without separate chargers, while traditional sockets serve household electrical appliances. The socket features built-in overvoltage, overcurrent, overvoltage, and short-circuit protection.
Technical specifications USB charger
Outputs: 2 x USB-C
Input voltage: 220 – 250V AC - 50/60Hz
Input current: Max. 0.5 A
Output power: Max. 25 W
Output voltage: 5V DC/max. 3 A
9V DC/max 2.8 A
5V DC/max. 2.1 A + 5V DC max. 2.1 A
Efficiency: > 80%
No-load power consumption: < 50 mW @ 230 V AC
Enclosure class: IP20
Operating temperature: 0°C ... 40°C
Storage temperature: -20°C ... 70°C
Technical specifications socket 250V~16A
Spring terminals Stripping length: 11-13 mm
Cable: 2 x 1.5 - 2.5 mm² (solid, stranded)
Supported charging protocols:
BC1.2 DCP, 1.5A
USB PD 3.2 PPS (serial interface support)
QC4.0 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Protective contactEarthing clips
Number of active contacts (round)2
Number of active contacts (flat)0
Number of active contacts (square)0
Assembly arrangementBasic element with complete housing
With signal lampno
Number of ports USB-A0
Number of ports USB-C2
Max. current rating of USB power supply3 A
Socket outlets phase-separatedno
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Product codes
SAPDPY800
STK2406042
PLC2406042
GTIN/EAN6438199033402
Manufacturer part number402EE2USBC-81
Vendor material number2406042
Basic information
Package measurements (L x W x H)88 x 177 x 116 mm
Package volume1.807 l
Package weight0.28 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
