SOCKET OUTLET W USB IMPRESSIVO SOCKET OUTLET W USB

Product code
2406044

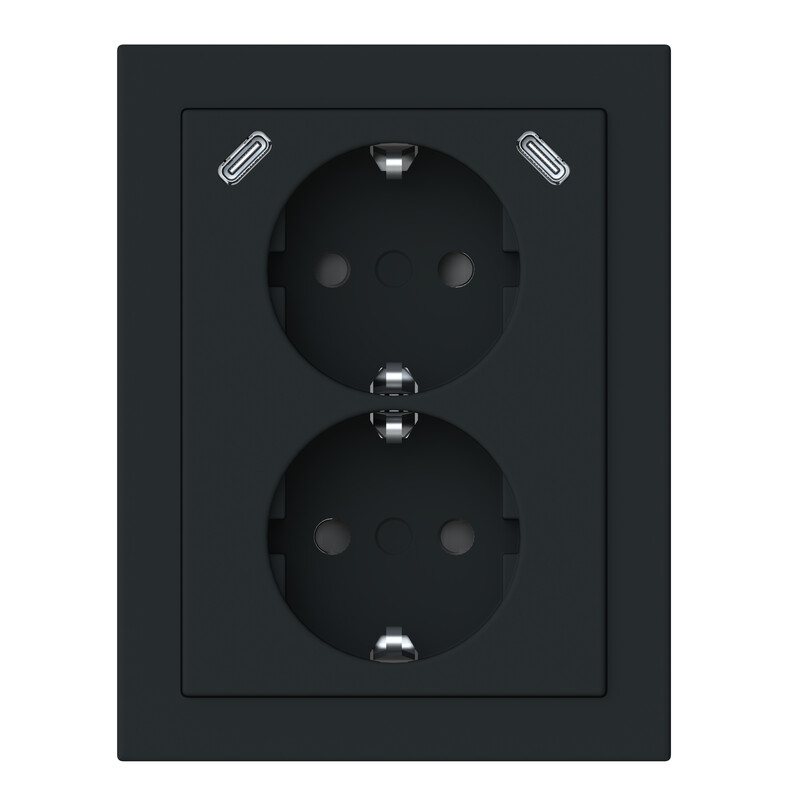

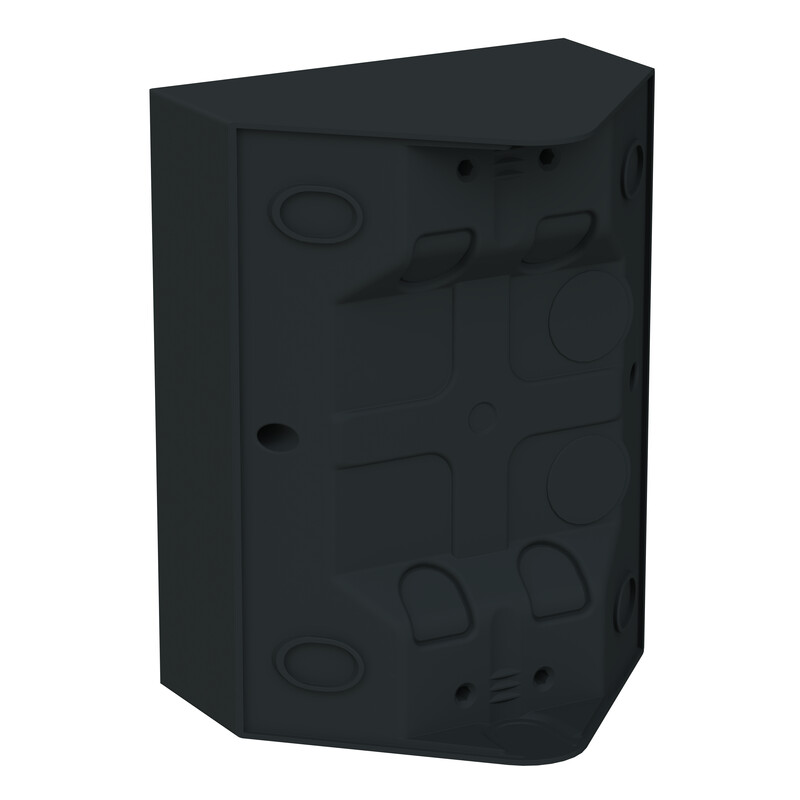

Impressivo® 2-part corner socket with two built-in USB-C charging ports. This modern double socket with two USB-C charging ports makes home charging solutions easier and neater. Charge phones, tablets, and other USB-C devices directly from the wall without separate chargers, while traditional sockets serve household electrical appliances. The socket includes built-in overvoltage, overcurrent, overvoltage, and short-circuit protection. Technical specifications USB charger - Outputs: 2 x USB-C - Input voltage: 220–250V AC - 50/60Hz - Input current: Max. 0.5 A - Output power: Max. 25 W - Output voltage: 5V DC/max. 3 A - 9V DC/max 2.8 A - 5V DC/max. 2.1 A + 5V DC max. 2.1 A - Efficiency: > 80% - No-load power consumption: < 50 mW @ 230 V AC - Enclosure class: IP20 - Operating temperature: 0°C ... 40°C - Storage temperature: -20°C ... 70°C Technical specifications socket 250V~16A - Spring terminals - Stripping length: 11–13 mm - Cable: 2 x 1.5–2.5 mm² (solid, stranded) Supported charging protocols: - BC1.2 DCP, 1.5A - USB PD 3.2 PPS (serial interface support) - QC4.0 This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Protective contactEarthing clips
Number of active contacts (round)2
Number of active contacts (flat)0
Number of active contacts (square)0
Assembly arrangementBasic element with complete housing
With signal lampno
Number of ports USB-A0
Number of ports USB-C2
Max. current rating of USB power supply3 A
Socket outlets phase-separatedno
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone

Product codes

SAPDPY802
STK2406044
PLC2406044
GTIN/EAN6438199033426
Manufacturer part number402EE2USBC-885
Vendor material number2406044

Basic information

Package measurements (L x W x H)88 x 177 x 116 mm
Package volume1.807 l
Package weight0.28 kg
Base uniteach
Package units1 / 4 / 40
Package contents
UNSPSC39121308
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
