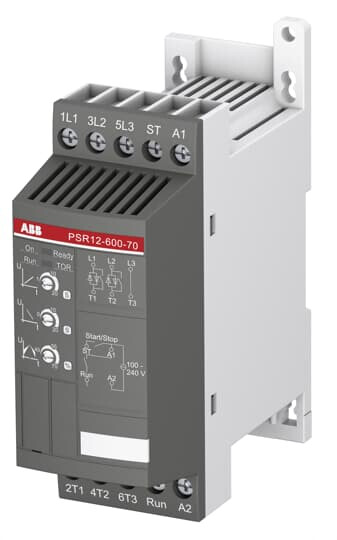

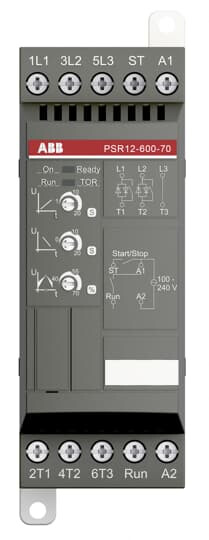

SOFT STARTER PSR12 5,5KW/400V 100-240VAC
Product code
3801522
MJUKSTARTARE PSR12-600-70
Two-stage soft starter. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Soft starter (EC000640)
Rated operation current Ie at 40 °C Tu12 A
Rated operating voltage Ue208 - 600 V
Rated power three-phase motor, inline, at 230 V3 kW
Rated power three-phase motor, inline, at 400 V5.5 kW
FunctionSingle direction
Internal bypassyes
With displayno
Torque controlno
Rated surrounding temperature without derating40 °C
Rated control supply voltage AC 50 Hz100 - 240 V
Rated control supply voltage AC 60 Hz100 - 240 V
Voltage type for actuatingAC
Integrated motor overload protectionno
Release classAdjustable
Degree of protection (IP)IP20
Product codes
SAPAEE898
STK3801522
PLC3801522
GTIN/EAN7320500338247
Manufacturer part numberPSR12-600-70
Vendor material number3801522
Basic information
Package measurements (L x W x H)160 x 120 x 50 mm
Package volume0.96 l
Package weight0.492 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
