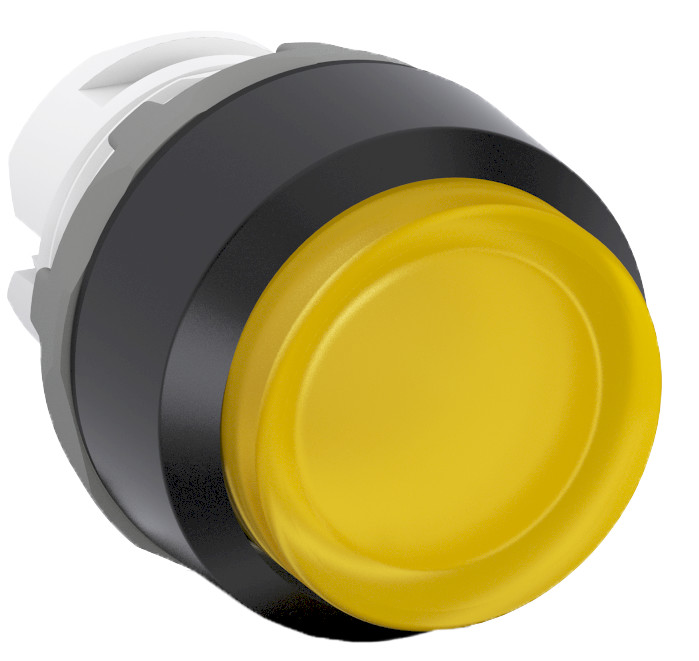

PILOT LIGHT PUSH BUTT MODULAR YELLOW HIGH RE-JUSTABLE LIGHT
Product code
2313684
Pushbuttons, switches, and indicator lights
Thanks to two product lines, ABB can provide a solution for nearly all customer needs. The Compact product line delivers a high-quality and extremely reliable solution with just one order code, while the Modular product line allows components to be combined according to requirements.
Benefits
Long service life thanks to self-cleaning contacts
Compact: a reliable IP69K product with just one order code simplifies ordering and management
Compact: small installation footprint
Modular: flexible and customizable to your needs
Modular: unique click-in mounting structure simplifies and accelerates installation without any tools required
Features
The Compact product line includes indicator lights, pushbuttons, emergency stop buttons, selector switches, and machine stop buttons
The Modular product line includes indicator lights, pushbuttons, emergency stop buttons, selector switches, machine stop buttons, joysticks, acknowledgment buttons, key-operated selector switches, and potentiometers
Good chemical resistance (polycarbonate) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Front element for push button (EC000221)
Colour buttonYellow
Number of command positions1
Construction type lensRound
Hole diameter22 mm
Width opening28 mm
Height opening11.5 mm
Type of buttonHigh
Suitable for lightingyes
With protective coverno
Labelledno
Switching function latchingno
Spring-returnyes
With front ringyes
Material front ringPlastic
Colour front ringBlack
Product codes
SAPDIH679
STK2313684
PLC2313684
GTIN/EAN7320500268032
Manufacturer part numberMP3-11Y
Vendor material number2313684
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.048 l
Package weight0.002 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121522
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
