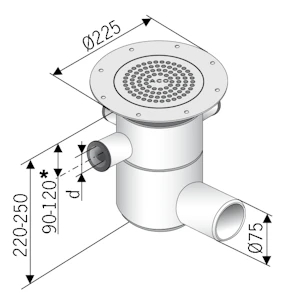

FLOOR DRAIN HORIZONTAL ACO DN70 AISI 304 2X32 +50,VINYL
Product code
3308225
ACO has designed a wide range of stainless steel drains for sanitary areas. The EG 150 system is designed as a hygienic, easy-to-install product family for spaces requiring a refined appearance, durable construction, and maximum corrosion resistance. The drains are manufactured from AISI 304 and AISI 316L materials. All drains feature a removable water seal with a flow rate of 1.2 l/s. The upper part of the drains is adjustable to ensure successful installation. For tile installation, a tile cover ACO RST 150x150 sloped 3308231 is required. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Shower drain (EC011720)
Material gutterStainless steel
With gridyes
Material gridStainless steel
With siphonyes
Length150 mm
Width150 mm
Product codes
SAPALQ066
HPAC3308225
PLC3308225
GTIN/EAN8590830117914
Manufacturer part number409044
Vendor material number409044
Basic information
Package measurements (L x W x H)255 x 255 x 225 mm
Package volume14.631 l
Package weight2.6 kg
Base uniteach
Package units1
Package contents–
UNSPSC47101525
BrandACO
VendorACO NORDIC OY
Documents (2)
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Features
Made from PVCNo
Warranty (years)30
Fully recyclableYes
