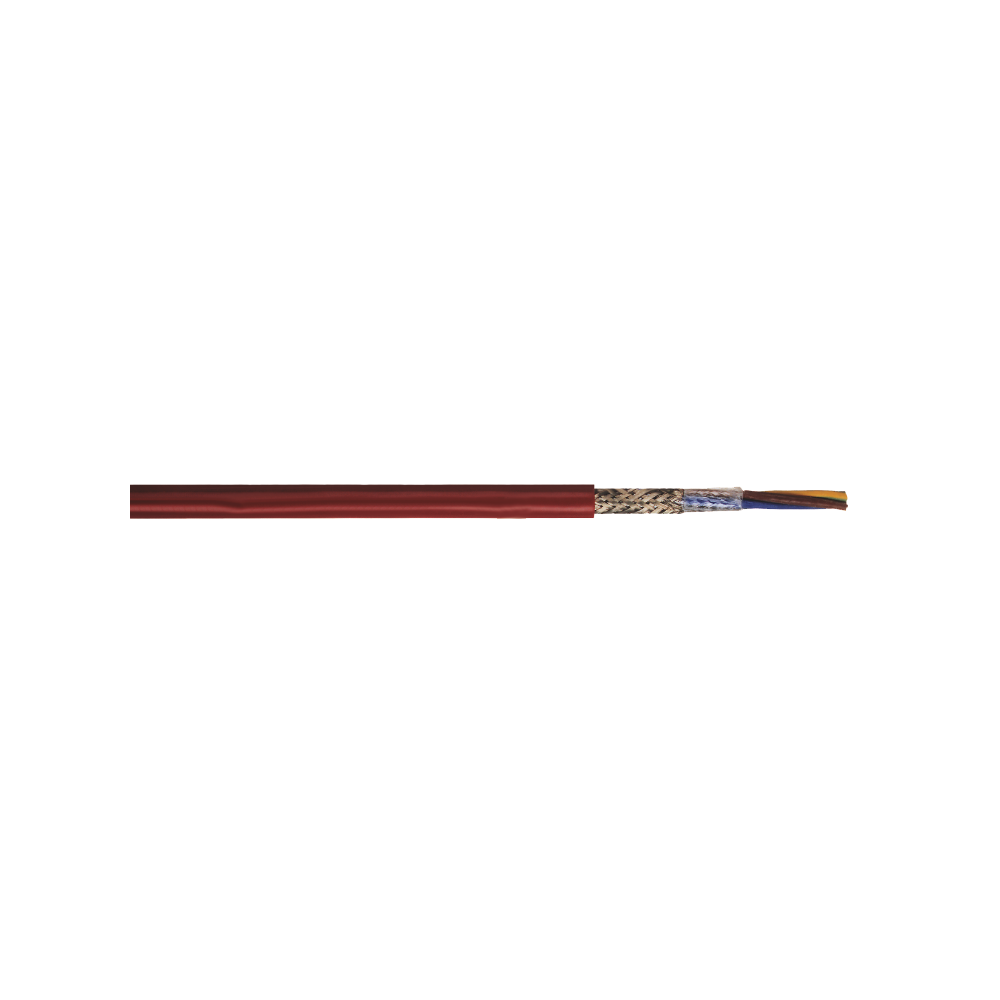

SILICONE CABLE EMC SIHF/CU/SI-J 7G0,75 RED D500
Product code
9210759
No product description available.
Product details
Technical specifications
Nominal cross section conductor0.75 mm²
Number of cores7
Material outer sheathOther
Colour outer sheathOther
Screentrue
Reaction-to-fire according to EN 13501-6: ClassNone
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approx.# mm
Nominal voltage U0300 V
Nominal voltage U500 V
Flame retardantAccording to IEC/EN 60332-1-2
Halogen free according to EN 60754-1/2true
Product codes
SAPANQ052
PLC9210759
STK9210759
GTIN/EAN6438056331375
Manufacturer part number01210005
Vendor material number01210005
Basic information
Package measurements (L x W x H)1000 x 11.5 x 11.5 mm
Package volume0.132 l
Package weight0.215 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121536
BrandACS
VendorACS HANDELS GMBH
Documents (3)
Brochures & documents
Links
Sustainability information
Features
Halogen freeYes
Made from PVCNo
