SEALED INDUSTRIAL LUMINAIRE LINEAR L100 ONOFF 104W 14,5KLM
Product code
4325862
AD Linear L100 ON-OFF (length 1682mm)
Available features:
• 104W
• This light is On/Off, also available as Dali (Dali2), MASTERCONNECT wireless smart light
• Diffuser available in (opal or clear)
• Color temperature 4000K
• Light distribution adjustable with lens units

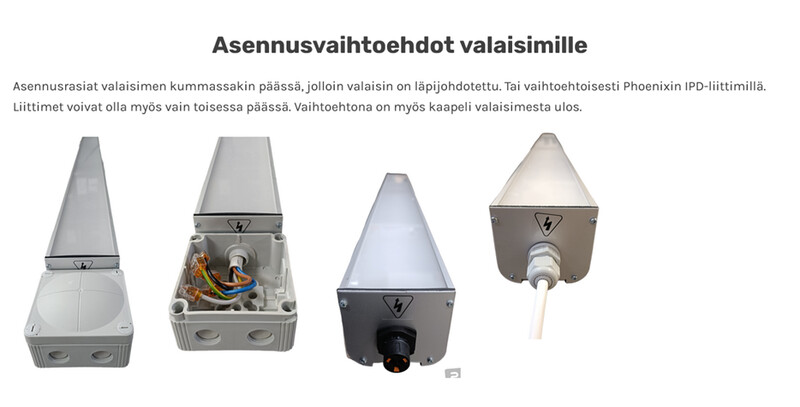

• Light available as through-wired with mounting boxes at ends. Also available with Phoenix IPD connectors. Alternative: cable exiting from the other end of the light

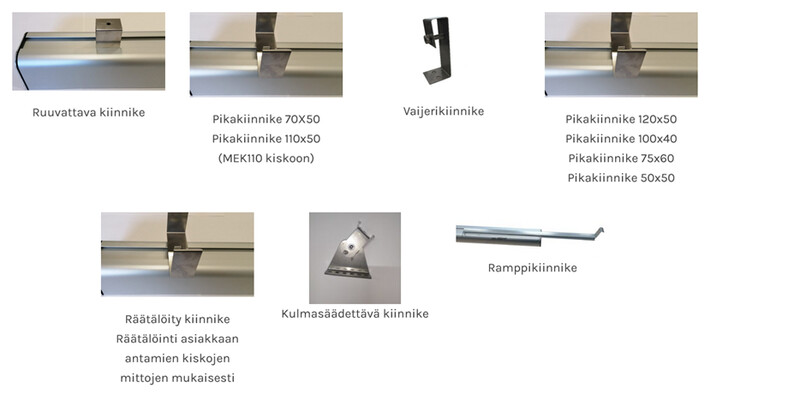

• Mounting options: mounting rail, suspension cable, screw-mounted to ceiling, or wall-mounted with angle bracket
• The upper part of the light can be covered flat to reduce dust accumulation
• Operating hours >100,000 hours, L80B10, Ta 25°C
• CRI >80 (also available >90)
• Protection class IP54 (with additional sealing IP65)
• IK08 (also available as IK10, with hardened diffuser material)
• Temperature tolerance -40 to +50°C
• Housing material recycled aluminum
• Warranty 5 years
• Manufactured in Finland
The lumen and watt values are maximum ratings. Opal diffuser reduces light output by approximately 10%. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for surface mountingyes
Lamp typeLED not exchangeable
Housing materialAluminium
Surface protection housingAnodised
Housing colourAluminium
Material coverPlastic, opal
With control gearyes
Dimmableno
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIno
Dimming DALI-2no
Product codes
SAPDMA125
STK4325862
PLC4325862
GTIN/EAN6410043258629
Manufacturer part numberL100 ON-OFF
Vendor material number4325862
Basic information
Package measurements (L x W x H)1750 x 90 x 80 mm
Package volume12.6 l
Package weight5.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandAD-LUX
VendorAD-LUX OY
The country of origin stated by the supplierFinland
