DOWNLIGHT COMPACT XL 170 IP54 24W 3350LM 3CCT WH
Compact XL is a versatile and high-quality downlight series that creates bright and evenly distributed light. The range is designed for public spaces such as lobbies and corridors, and especially for offices and educational institutions. The luminaires are designed to minimize glare, with a UGR value below 19. The luminaire is also excellent for renovation projects. The series offers four different sizes, including a PIR model. Power and color temperature can be selected from multiple options. You can choose from three base colors to match your space. Additionally, custom RAL Classic finish colors are available on a project-specific basis. The luminaires are highly energy-efficient and long-lasting, with an excellent lm/W ratio.
- Body and reflector made of aluminum, lenses made of plastic.
- White RAL 9010, black RAL 9005, gray RAL 7037.
- Protection class II.
- Recessed ceiling mounting.
- Chainable: on/off and Casambi 3 x 1.5/2.5 mm², PIR 4 x 1.5/2.5 mm² and DALI 5 x 2.5 mm².
- Installation height 2–5 m.

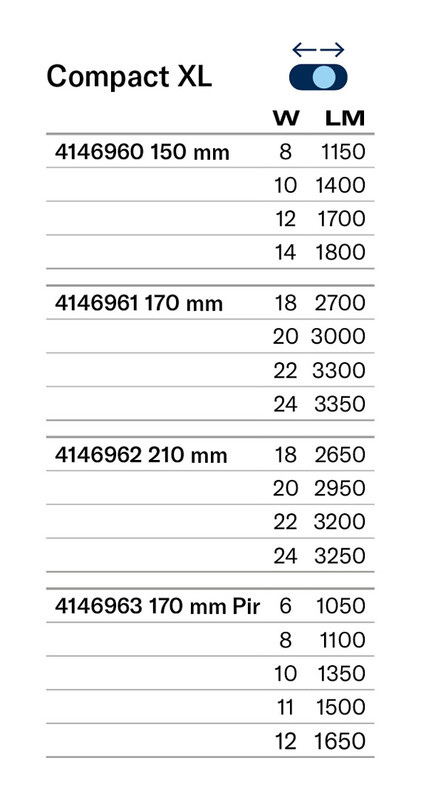

- Fixed LED with adjustable power and lumens per luminaire: 150 mm: 8 W 1150 lm, 10 W 1400 lm, 12 W 1700 lm, 14 W 1800 lm. 170 mm: 18 W 2700 lm, 20 W 3000 lm, 22 W 3300 lm, 24 W 3350 lm. 210 mm: 18 W 2650 lm, 20 W 2950 lm, 22 W 3200 lm, 24 W 3250 lm. 170 mm PIR: 6 W 1050 lm, 8 W 1100 lm, 10 W 1350 lm, 11 W 1500 lm, 12 W 1650 lm.
- Color temperatures 3000 K, 3500 K and 4000 K, adjustable per luminaire. CRI 80 / Ra 80.
- MacAdam 3 SDCM.
- IP20/IP54.
- IK03.
- On/off, DALI and Casambi.
- PIR models operate on passive infrared sensing and are suitable for master/slave (M/S) installation, enabling operation of up to three slave luminaires.
- Operating ambient temperature 0 … 25 °C.
- Useful life L80 100,000 h (Ta25°C).
- Driver lifespan 50,000 h.
- Driver lifespan for DA and CA models: 100,000 h.
