SPOTLIGHT DIRECT S IP20 1750LM 940 36D DA2 WH
Product code
4146981

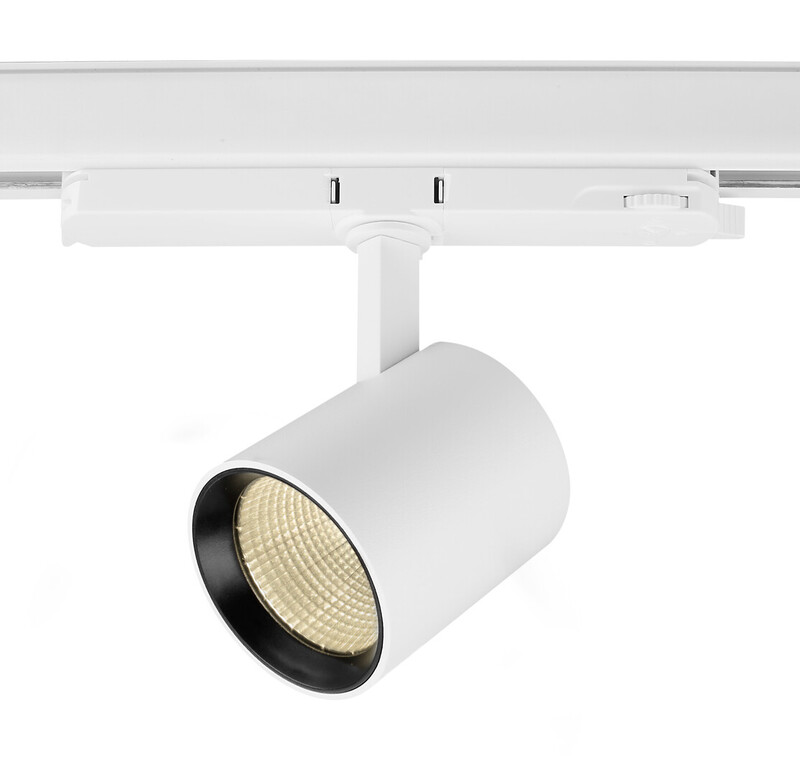

Direct S is an energy-efficient, long-lasting, and directional spotlight. The lamp's compact size, high-quality light, and excellent color rendering make it an ideal choice for public spaces. Applications include shops, retail stores, hotels, and restaurants. Direct is mounted on a contact rail, making installation easy and flexible. The lamp features a nearly invisible, directly integrated connector to the rail adapter. The spotlight's directionality offers options for lighting various spaces; the lamp can be easily moved and aimed as needed.
• Aluminum housing. Reflector 36°.
• White, RAL 9010 and black, RAL 9005.
• Protection class II.
• Mounting on Dalí contact rail.
• Compatible Dalí contact rails: Nordic Aluminium Global Pulse and Stucchi OneTrack.
• Installation height 3–6 m.
• Color temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90.
• IP20.
• Fixed LED 15 W: 1700/1750 lm.
• MacAdam 3 SDCM.
• Accessories: reflector 20D, honeycomb glare shield, and two colored decorative rings, options gold and silver.
• Operating temperature range 0 … 25 °C.
• Useful life L70B50 100 000 (Ta25°C).
• Useful life L80B50 100 000 (Ta25°C). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingno
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingyes
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityRotating and swivelling
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPDMZ503
STK4146981
PLC4146981
GTIN/EAN6435200319302
Manufacturer part numberA1DIRA-DALI
Vendor material number4146981
Basic information
Package measurements (L x W x H)205 x 160 x 80 mm
Package volume2.624 l
Package weight0.48 kg
Base uniteach
Package units1 / 24 / 288
Package contents–
UNSPSC39111544
BrandAIRAM
VendorAIRAM ELECTRIC OY AB
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.24
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
